NDI | HX3 is a new version of the NDI protocol that further optimizes the balance between
video transmission quality and bandwidth, and achieves visually lossless video transmission with less latency and better quality by using a fraction of the bandwidth of Full NDI.

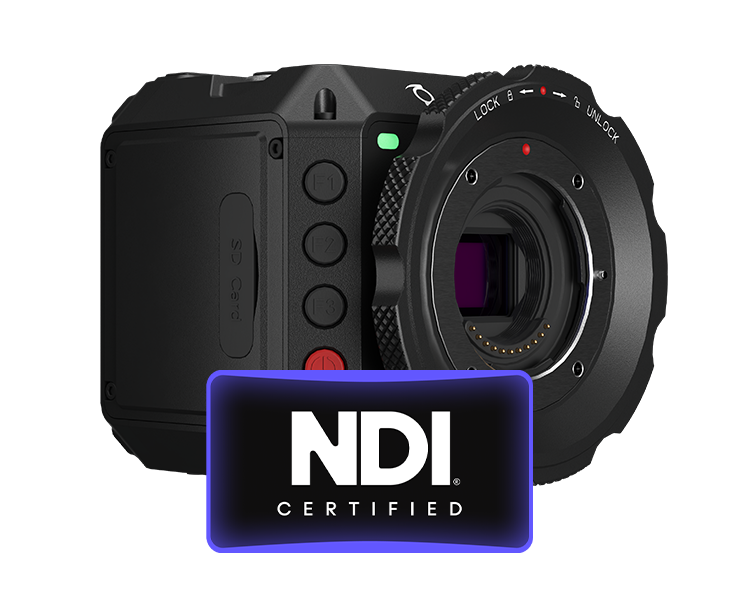

With NDI | HX3, Z CAM E2N* gives users full control over streaming production,
with the perfect balance of quality and effciency, no compromise.
* Z CAM E2N also supports NDI HX
4K @60fps Max
4/3" CMOS sensor

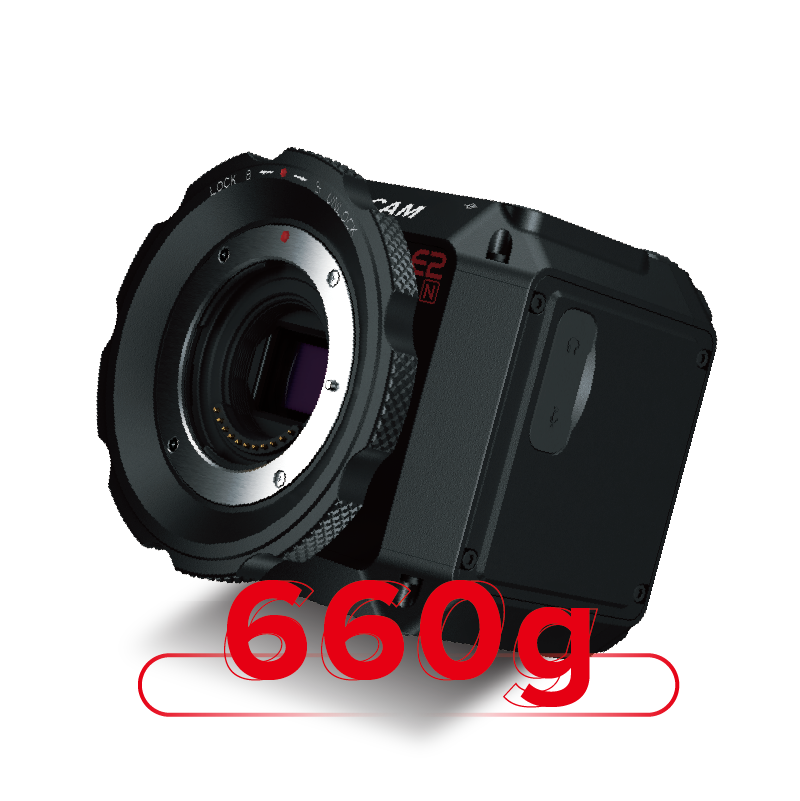

Light Weight
Simultaneous streaming
NDI and SSP (H.265/264)

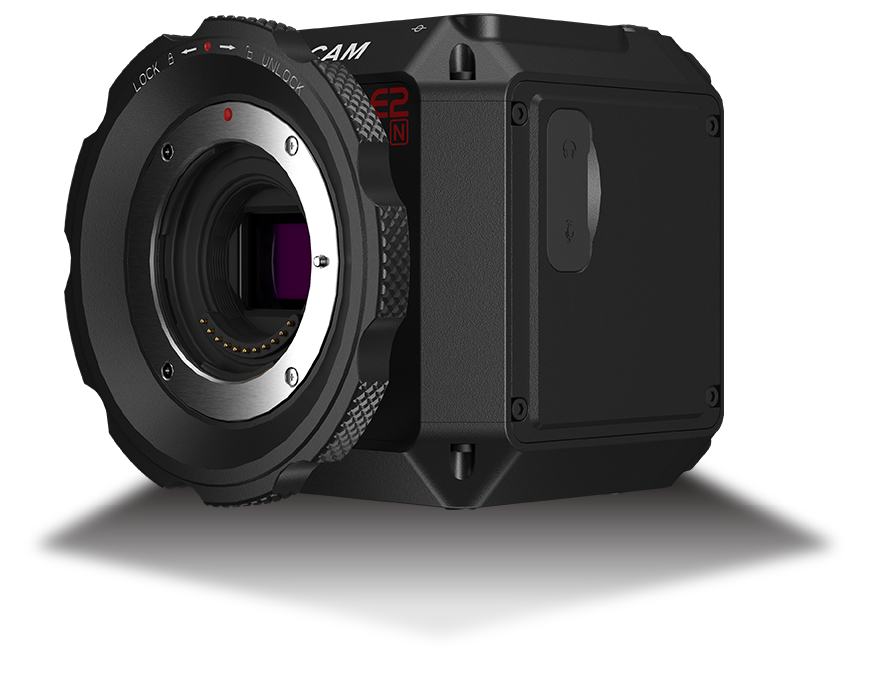

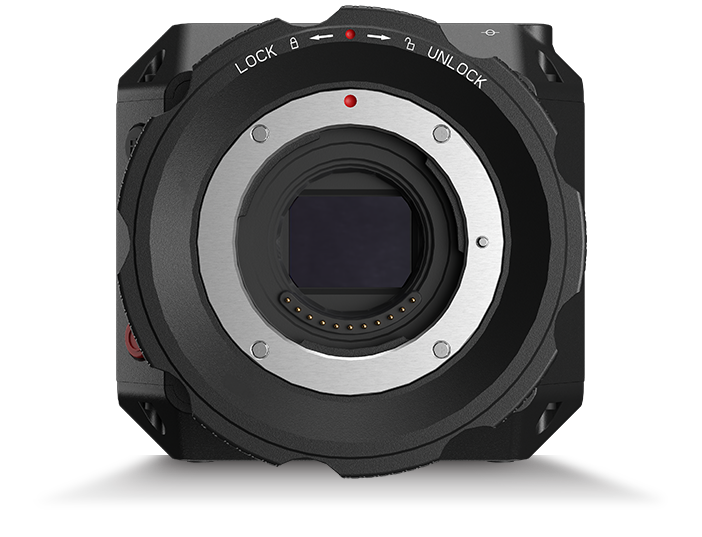

Micro Four Thirds:
with Active Lock
Lens Mount

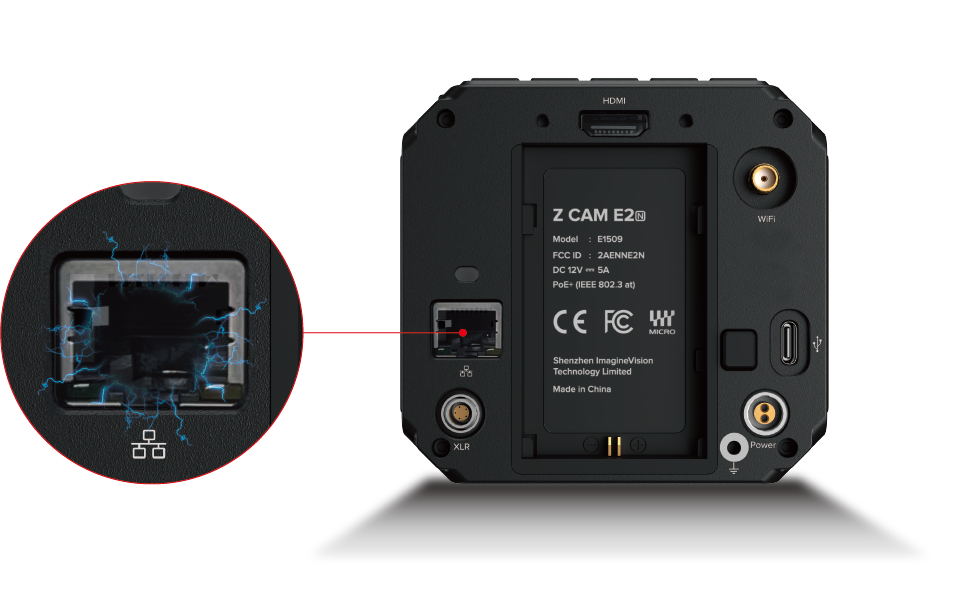

PoE +
Note: AC/DC Adapters, LP-E6 batteries & Ethernet cables are not included in the standard package

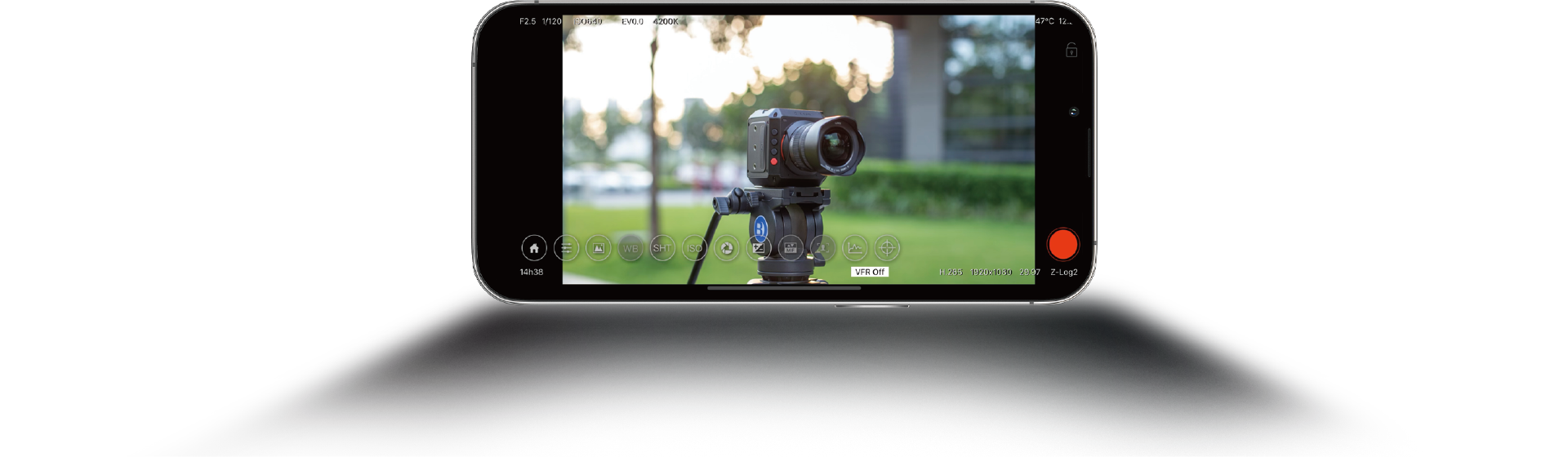

iOS & Android app
Z CAM Controller
App Store (iOS)
Z CAM Controller
Google Play
Camera
| Camera model Z CAM E2N |
Sensor Type 4/3" CMOS sensor |
| Effective Pixels 10.71 mega pixels |
Dynamic Range 11.5 Stops |
| Lens Mount Micro Four Thirds (with Active Lock) |
Microphone Built-in Stereo Microphone |
Recording
| Recording Resolution 4K, 3696x2772, 1080p |
Recording Frame Rate 4K @ 23.98 / 24 / 25 / 29.97 / 50 / 59.94fps 3696x2772 @ 23.98 / 24 / 25 / 29.97fps 1080p @ 23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 / 240fps |
| Streaming Resolution 4K, 3696x2772, 1080p |
Streaming Frame Rate 23.98 / 24 / 25 / 29.97 / 50 / 59.94 23.98 / 24 / 25 / 29.97 / 50 / 59.94 / 120 |
| Color Bit-depth 8-bit |
Video Encoder H.265 / H.264 |
| Streaming Protocol NDI_HX3, SSP |
Audio Format 16-bit 48 kHz |
| Audio Encoder AAC / PCM (for MOV only) |
File Format MOV / MP4 |
| Record Mode Video / Time Lapse Video / Still Image Capture |
Settings
| ISO Auto, Manual (500 ~ 102400), Native ISO: 500 / 2500 |
Shutter Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°) |
| White Balance Auto, Preset, Manual (2300K ~ 7500K) |
Focus Mode MF / AF / CAF |
| Image Profile Rec.709 / Concert / Vivi 0 / Vivi 1 / Vivi 2 |
Audio Audio In / Out Level |
| Time Code Current Time / Manual Input |
Storage
| Recording Media SDXC Class 10 SD card, recommend to use UHS-I Speed Class 3 (U3) type for 4K recording |
File System exFAT |
Connectivity
| HDMI HDMI 2.0 Type A, up to 4K 60fps |
USB USB 3.0 Type C |
| Audio-in 3.5 mm stereo jack socket |
Audio-out 3.5 mm stereo jack socket |
| Wi-Fi 5G band, 802.11ac, external antenna port |
Ethernet Gigabit Ethernet port |
Power
| Power Input DC 12V 5A (2-pin LEMO socket), PoE+ (IEEE 802.3 at) |
Battery LP-E6 series compatible (Battery not included) |
Physical
| Weight 660g (without lens) |
Dimensions (HxWxL) 85.3 x 91 x 86mm (without lens) |
Environment
| Storage Temperature -20 °C ~ 60 °C |
Operation Temperature 0 °C ~ 40 °C |
Note: All weight and dimensions are rounded values.
