Ultra thin & Light Weight

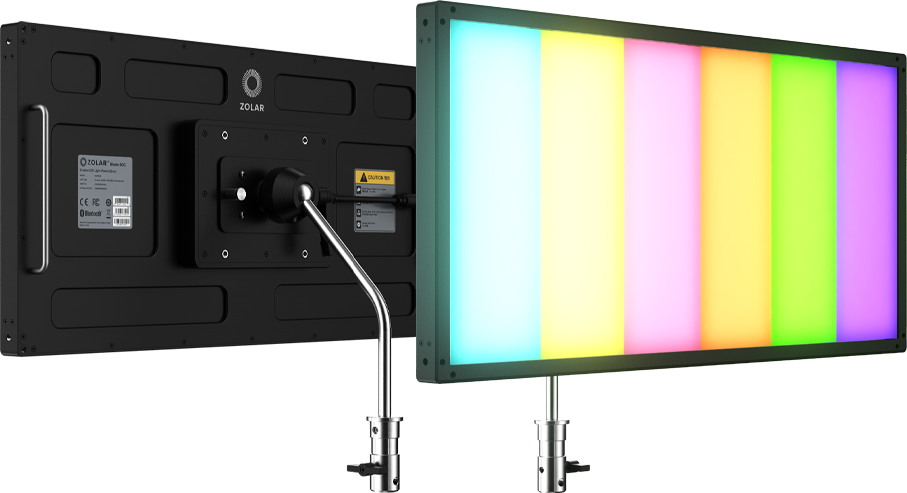

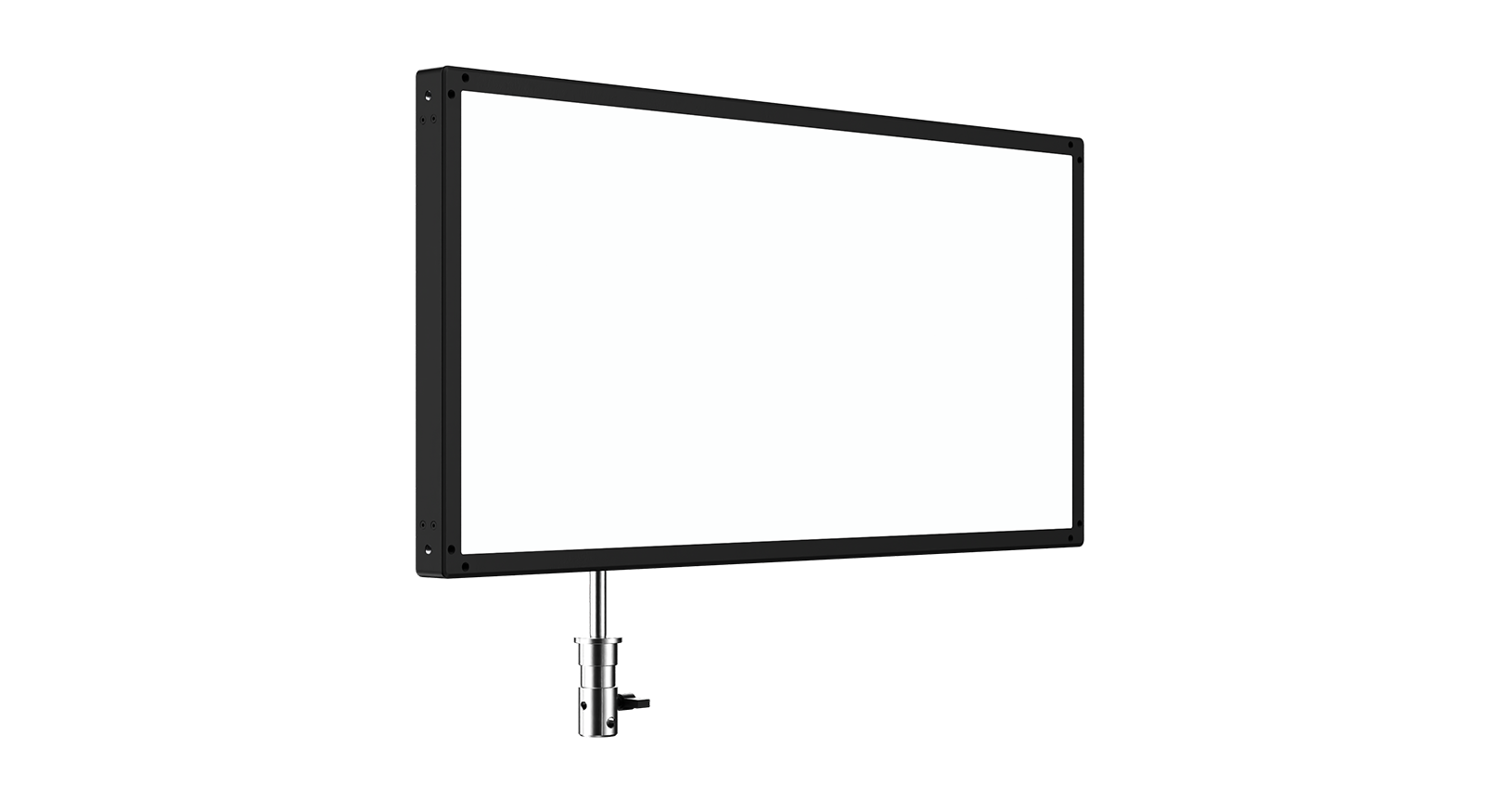

Introducing the ZOLAR® Blade 60C, a truly exceptional Ultra Thin and Lightweight Full RGBAW LED light panel, with a mere one-inch edge thickness.IP 66
No fear in challenging environment
With an lP 66 rating, it confidently conquers outdoor and challenging environments with ease.Unmatched SSl

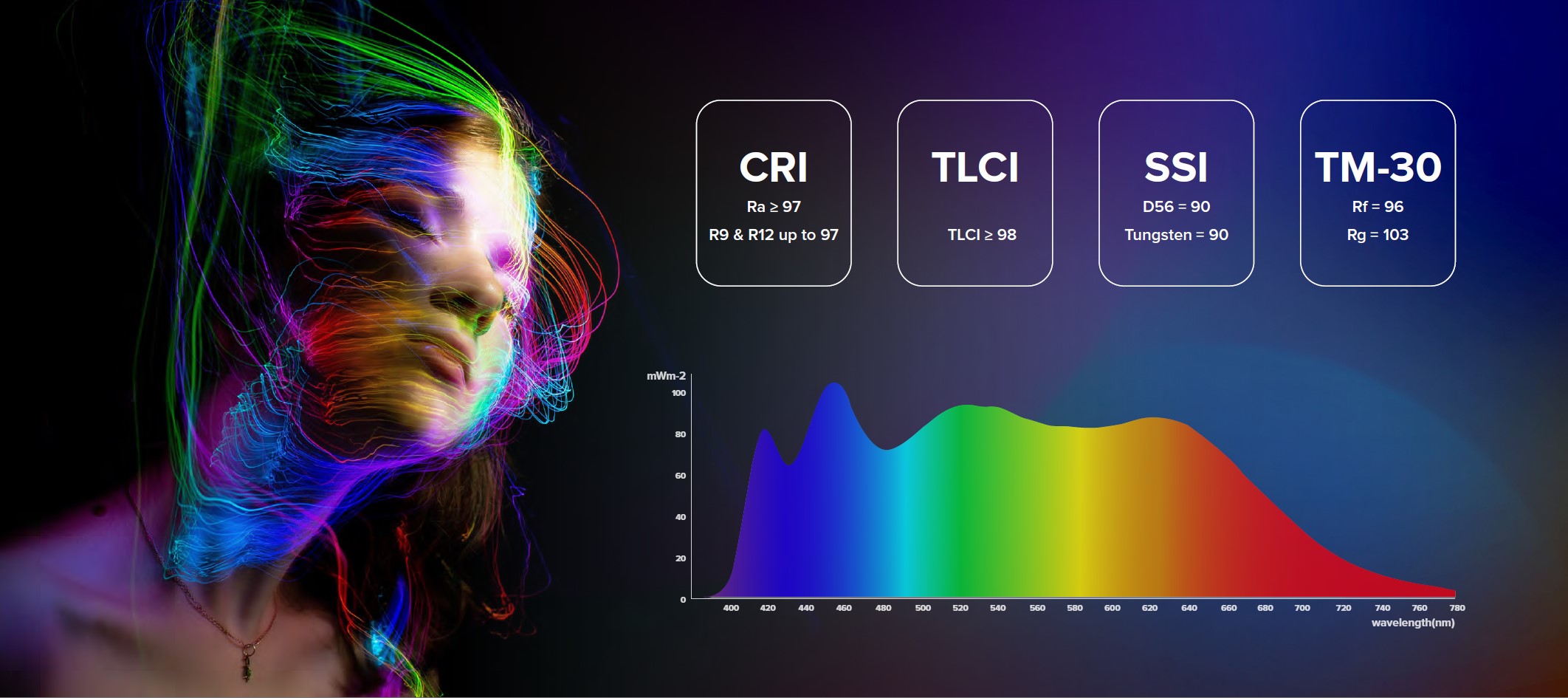

Spectral Similarity Index is most relevant to LED light source for camera sensors.This LED panel guarantees outstanding color rendition, achieving an impressive Spectral
Similarity Index (SSl) of up to 90, a leading score in the market.

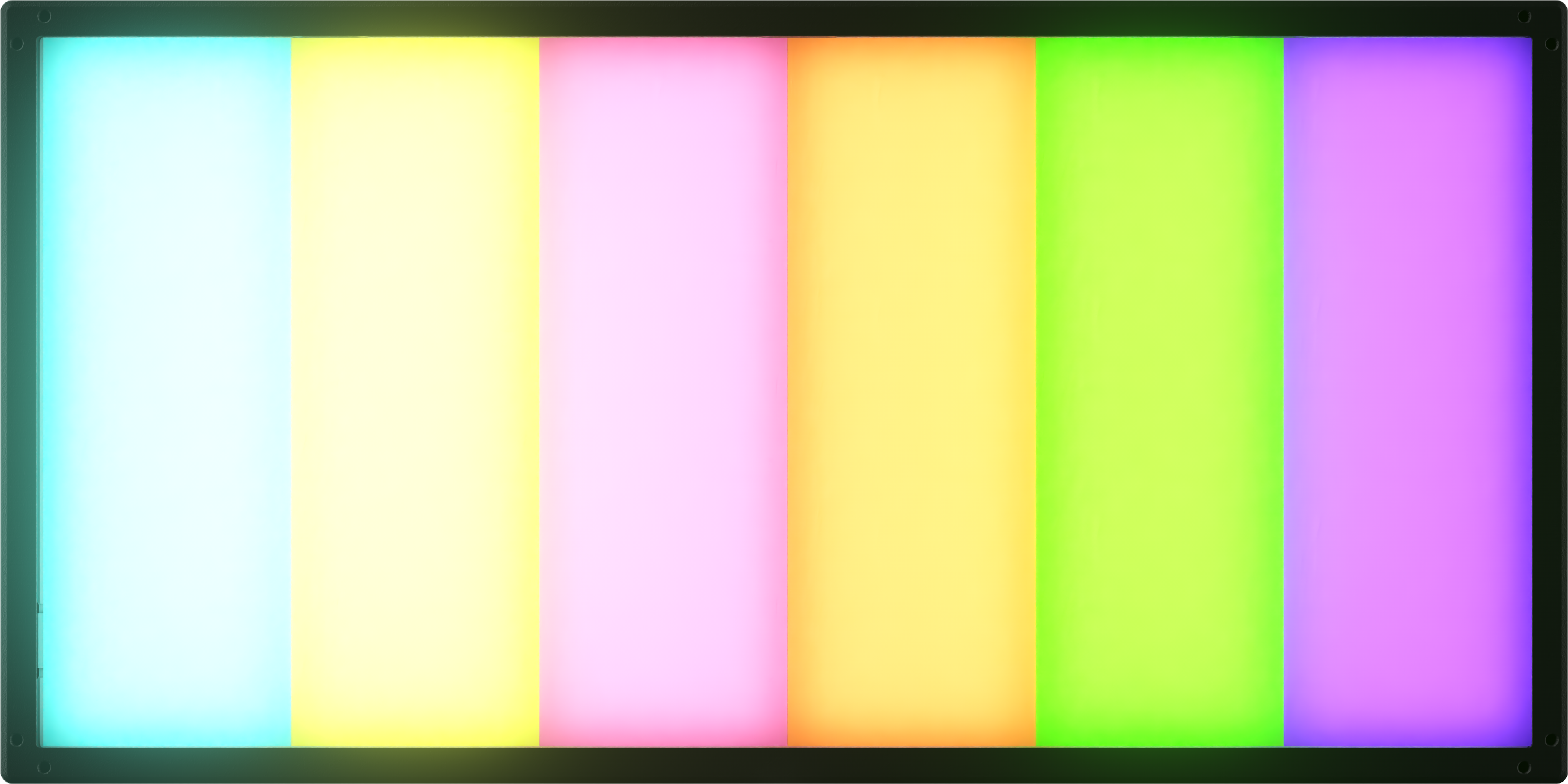

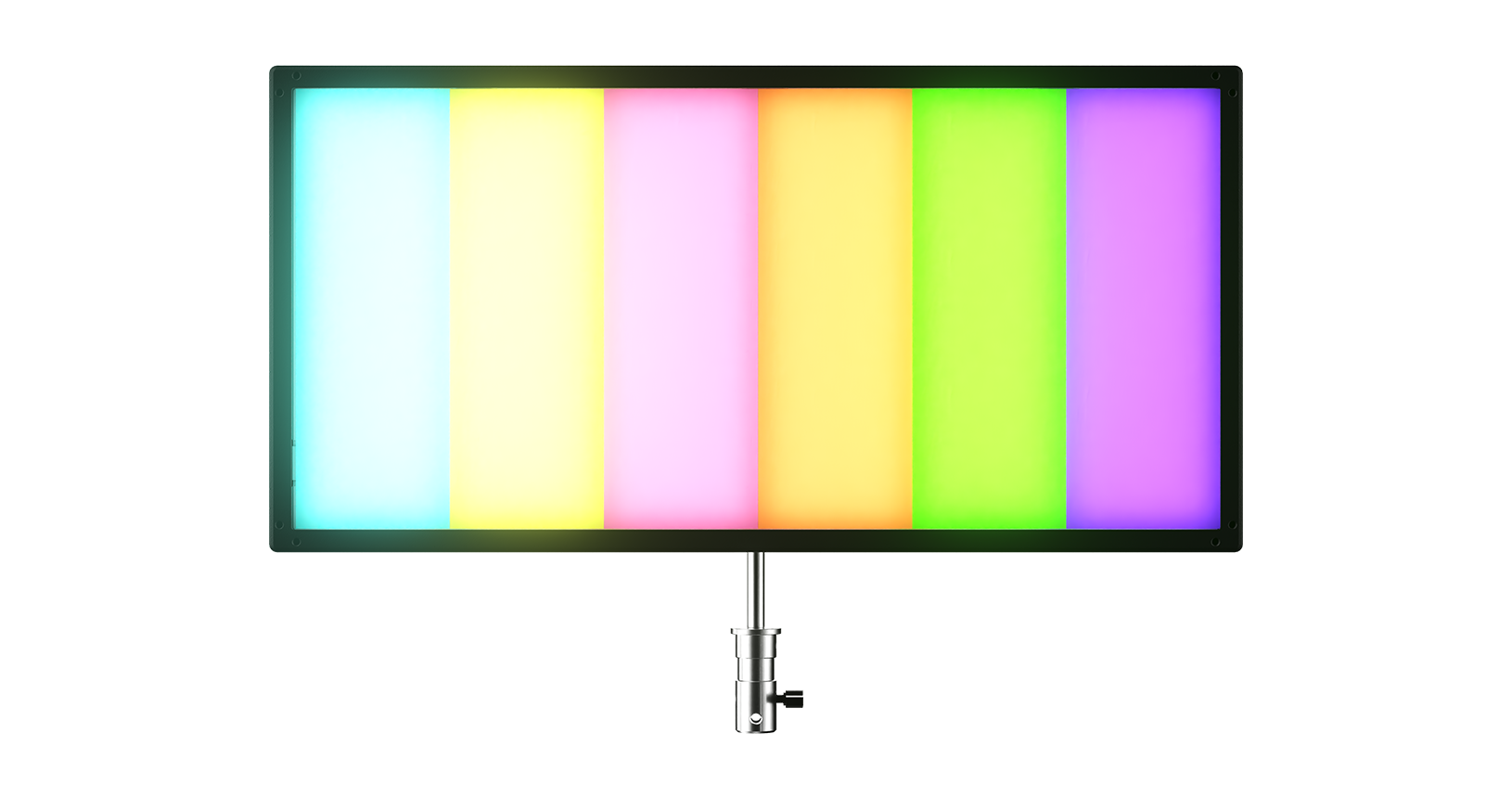

6 Lighting Zones
Pixel control through DMX & CRMX Pre-programmed dynamic pixelated effects.LumenRadio CRMX

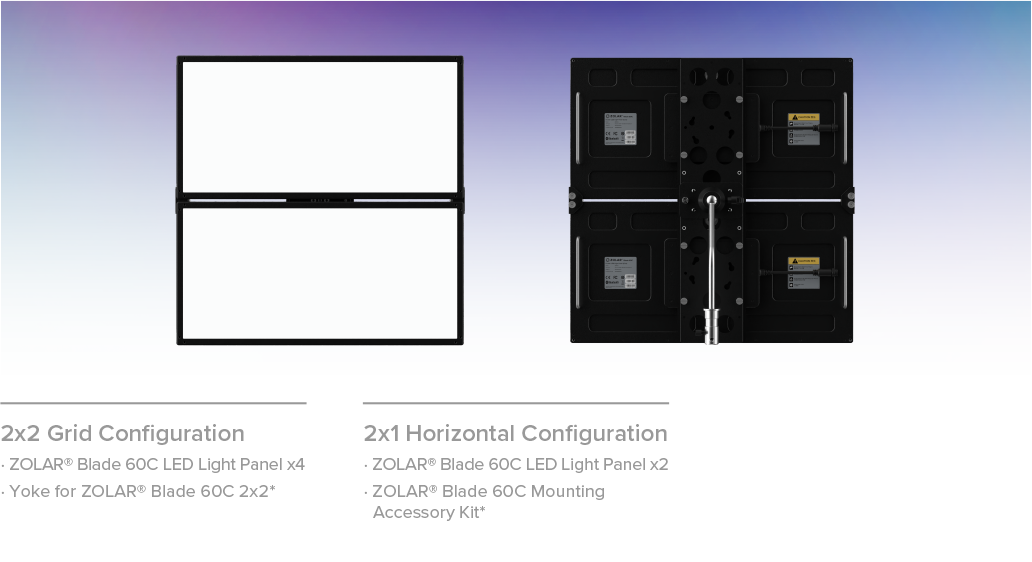

In addition to DMX control, CRMX is introduced to offer a higher degree of control flexibility.Multi Panel Configuration
Its ingenious design enables effortless multi-panel configuration, elevating its versatility to new levels.

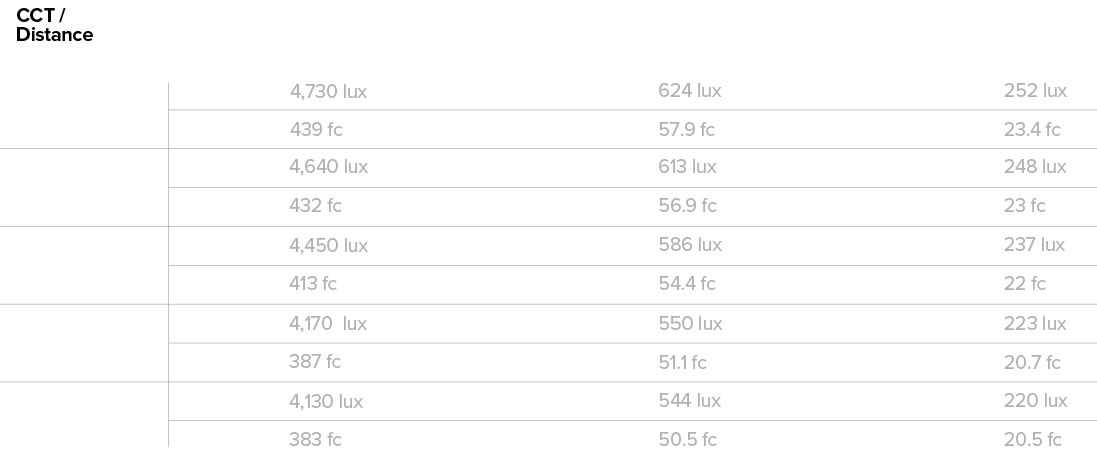

Photometric*
*All measured values are average numbers. There is a certain variance in different products.

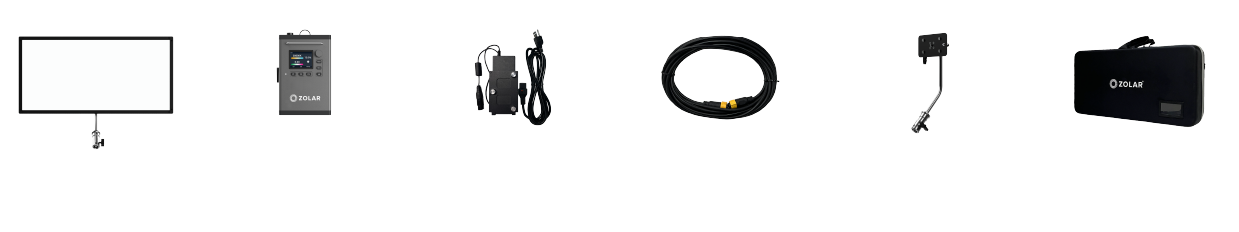

Basic Kit

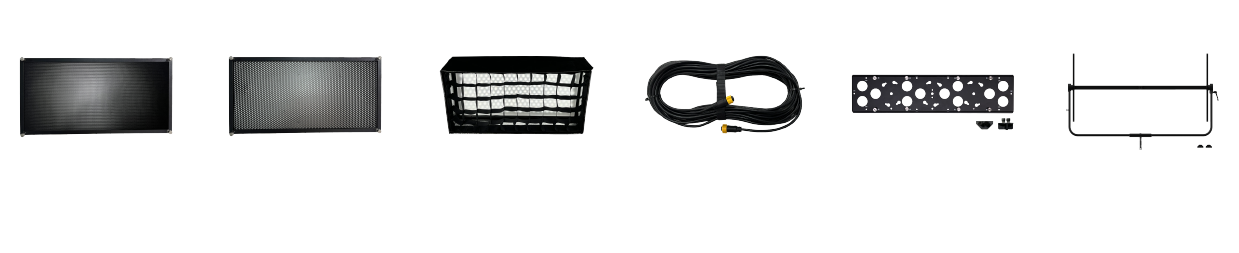

Optional Accessories
| LED Type 5 color, Full Spectrum |
Beam Angle 90º |
|||
| White Light 2,000K to 20,000K continuously variable correlated color temperature |
Light Diffusion System Built in diffusion |
|||
| Colored Light Full RGBAW Color Gamut with Hue and Saturation Control |
||||
| IP Rating (LED panel only) IP66 |
||||
| CRI Ra ≥ 97 (R9 & R12 up to 97) |
SSI D56 = 90, Tungsten = 90 |
|||
| TLCI TLCI ≥ 98 |
TM-30 Rf = 96, Rg = 103 |
|||
| Light Aperture 572mm x 272mm (22.52" x 10.71") |
Light Effect Bulit in > 24 light effects | |||
| Dimming 0 ~ 100% continuous (0.1% precision), different dimming curves |
Pixel Capabilities 6 lighting zones, horizontal layout |
|||
| Color Temperature
Tolerance ±100 K (nominal) |
Pixelated Effects 8 pre-programmed dynamic pixelated effects |
|||

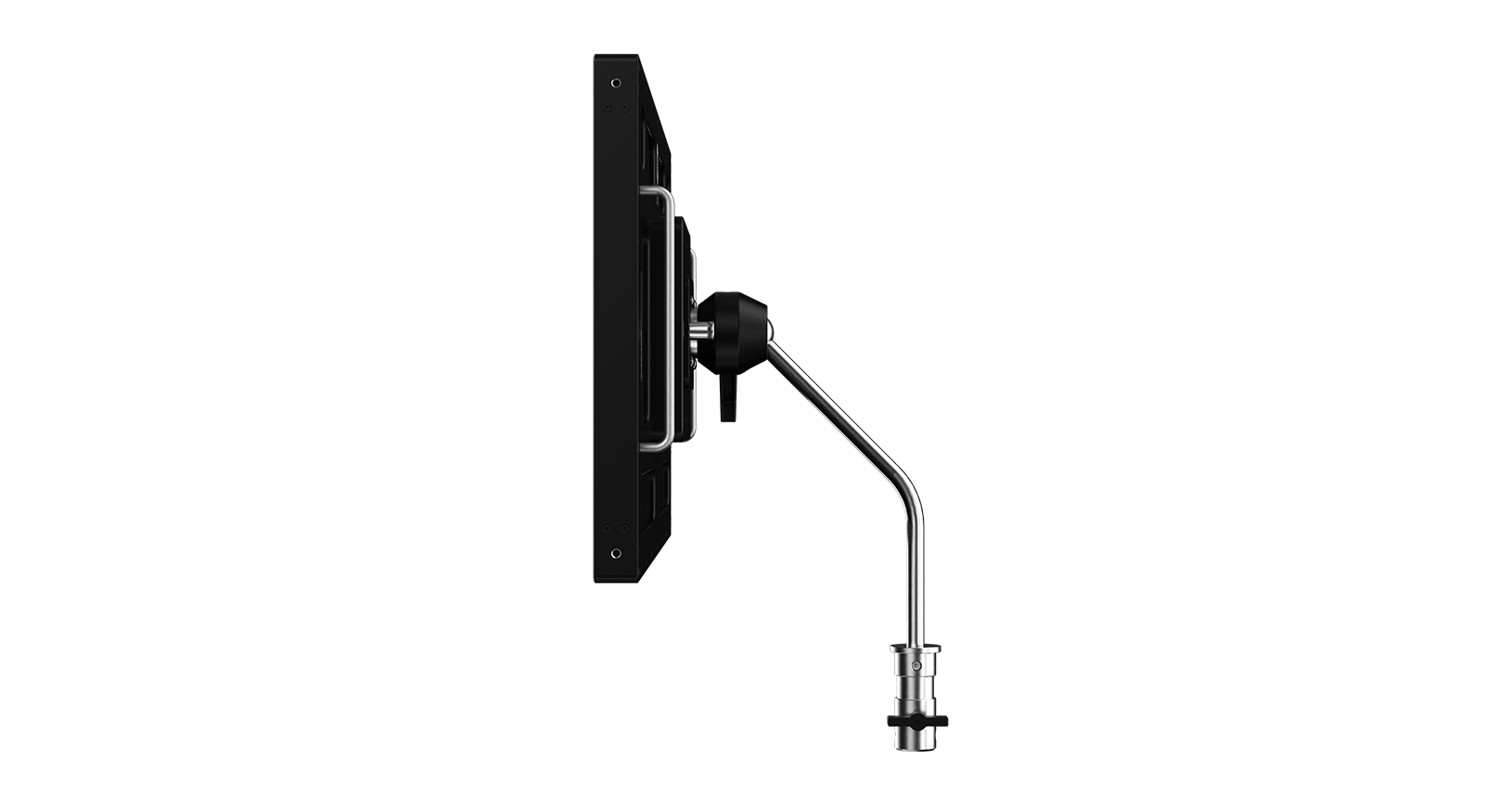

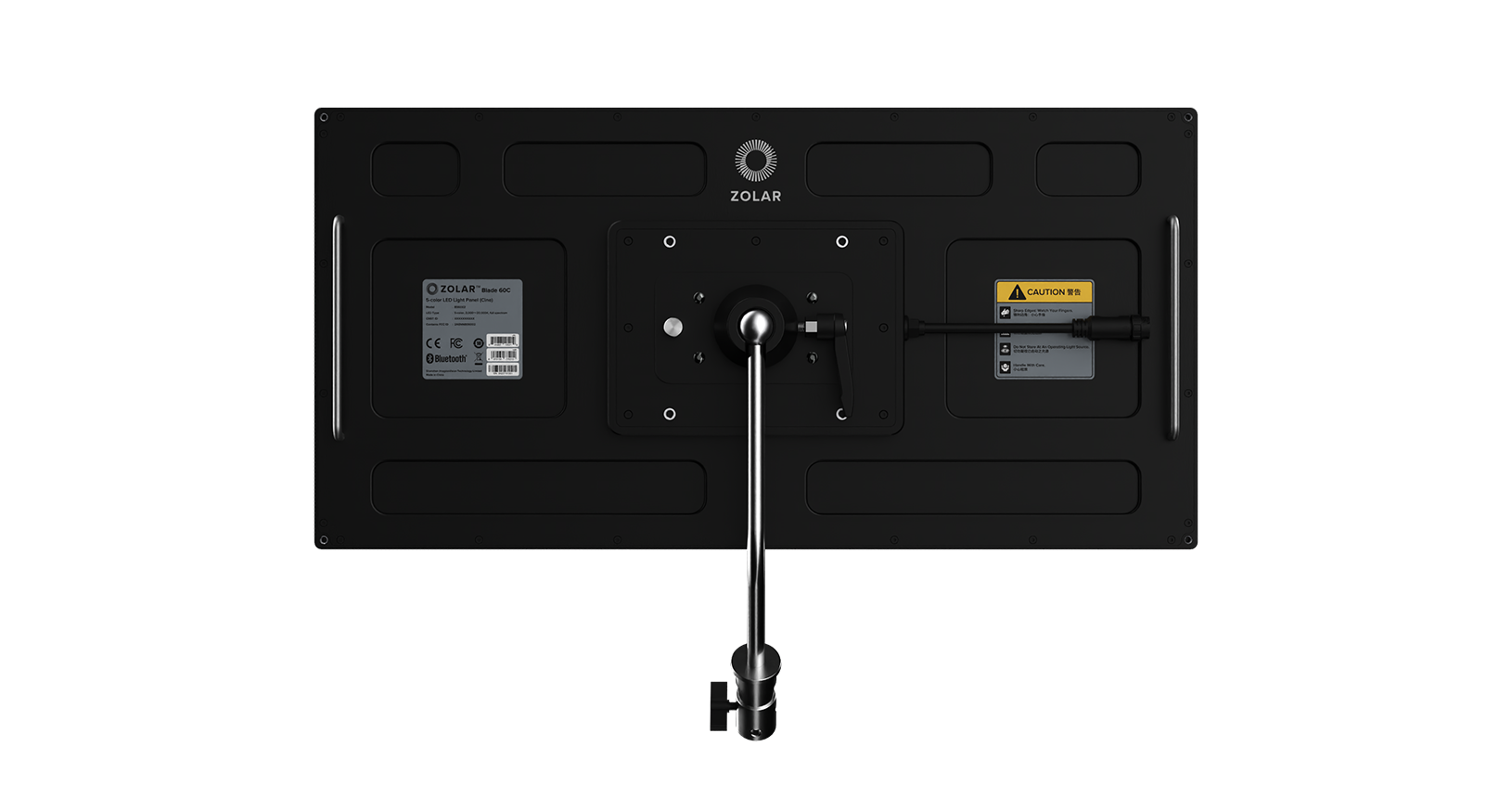

| Mounting ZOLAR Goose-Neck Rear Mount Plate: 360 degree Single Ball Mount, Ratchet Handle, Junior Pin |

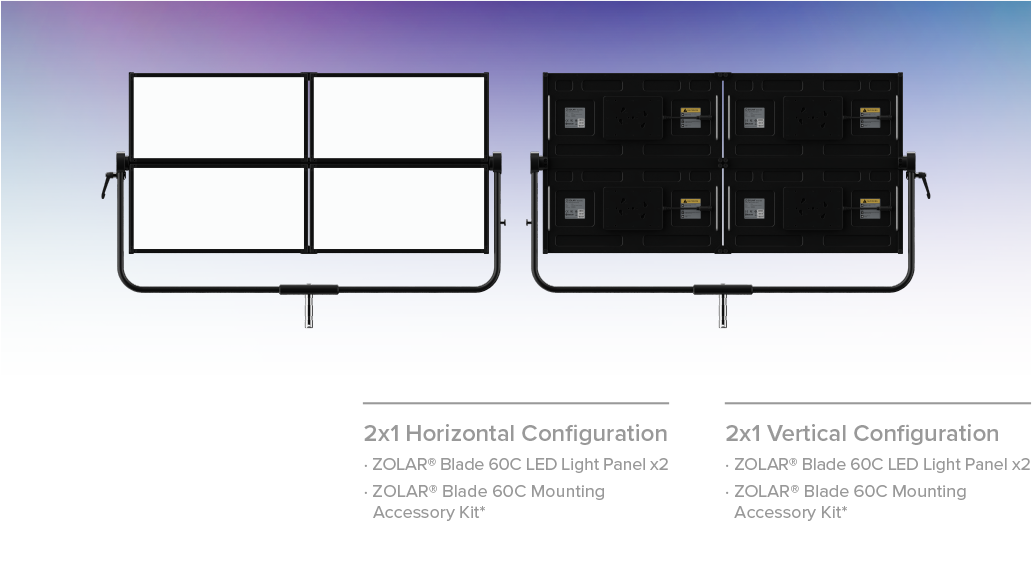

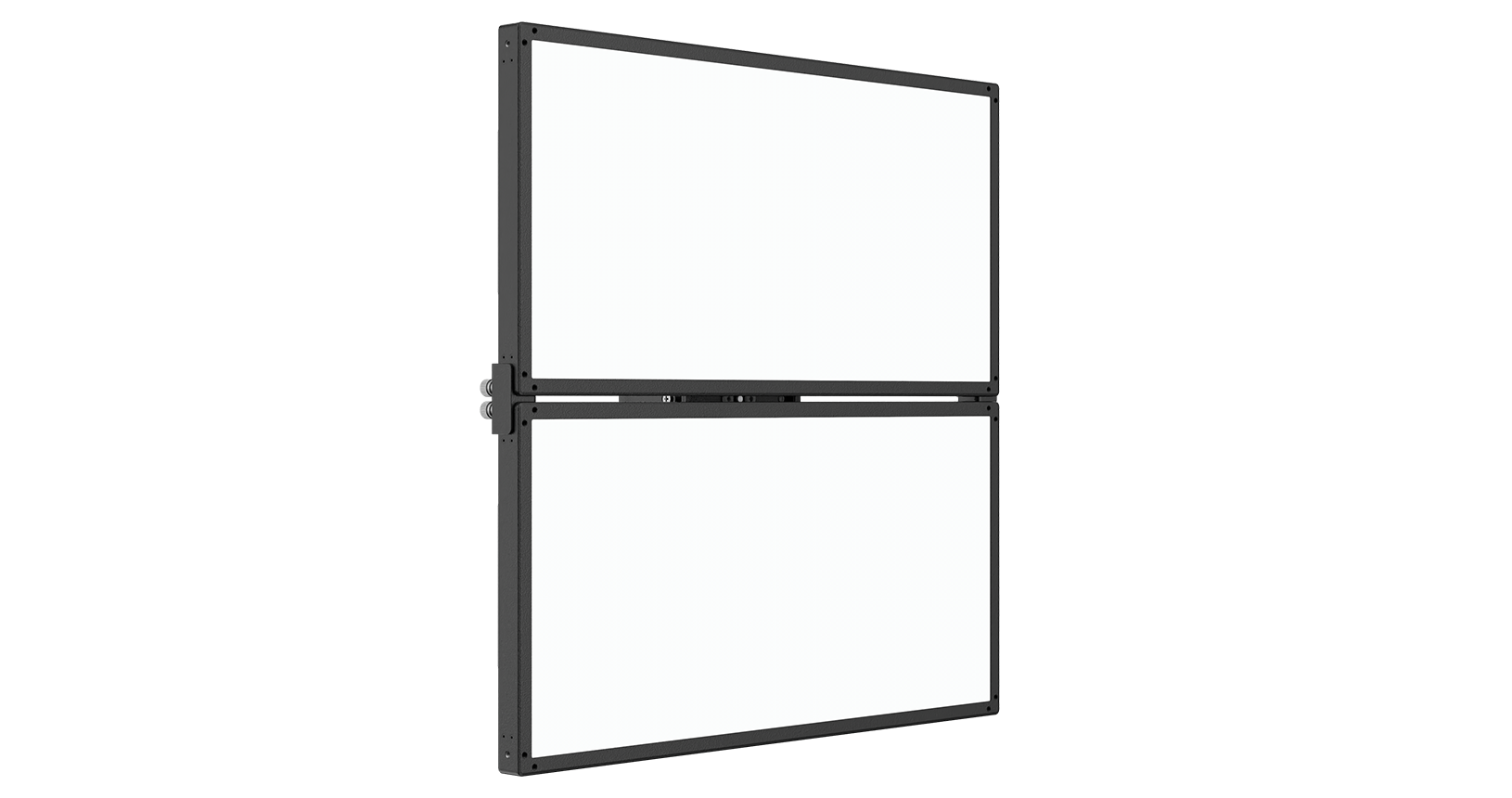

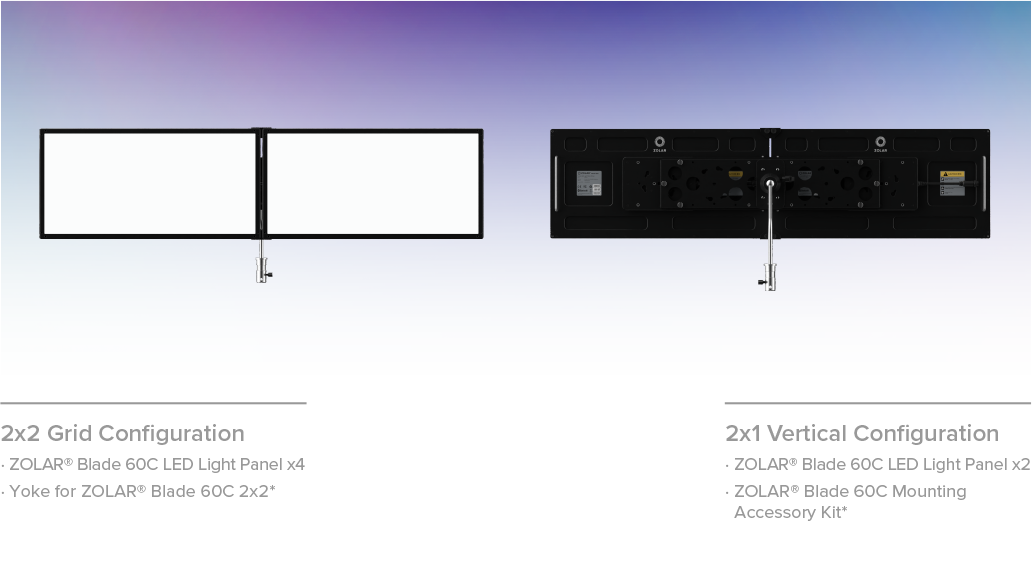

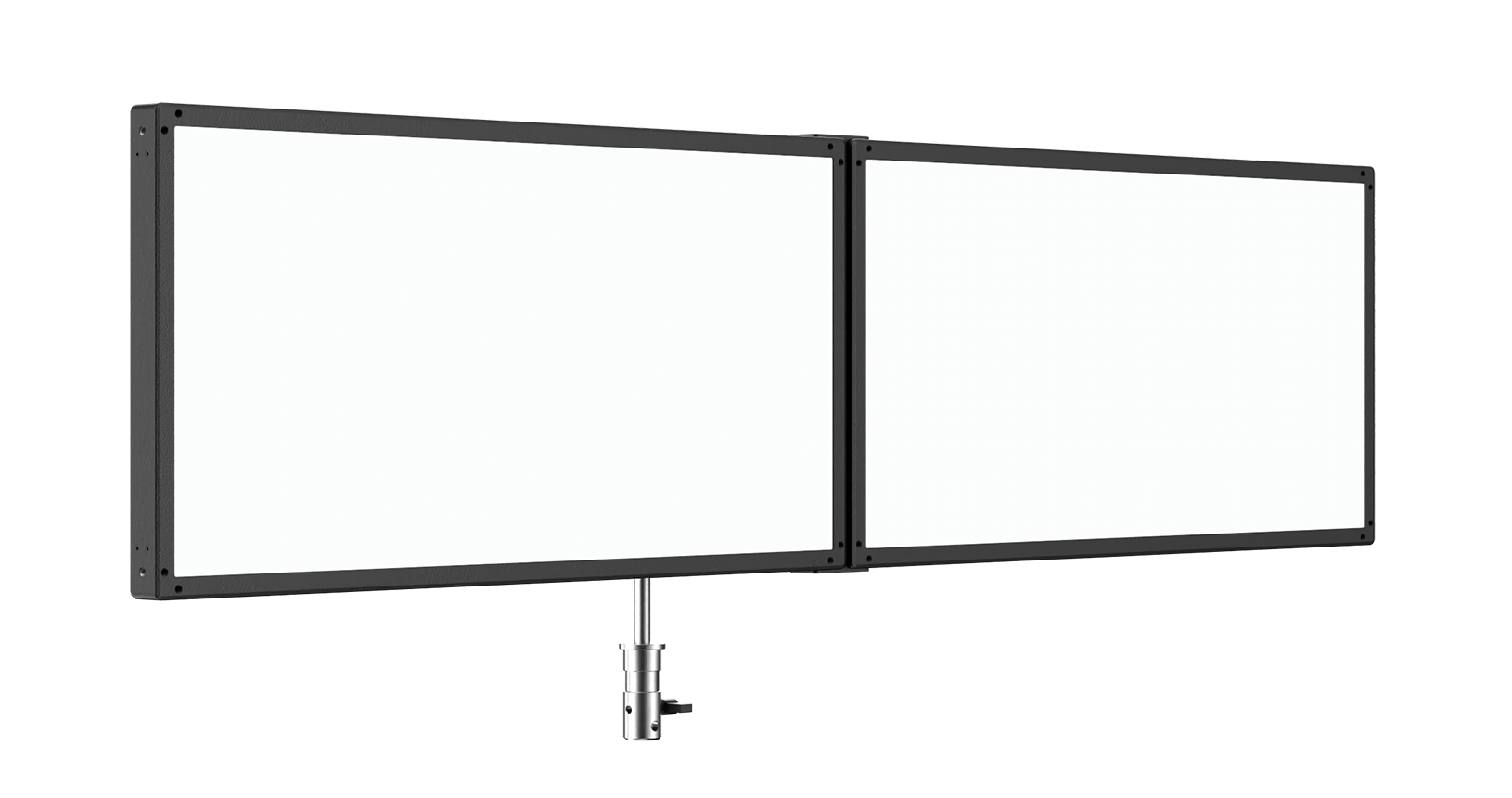

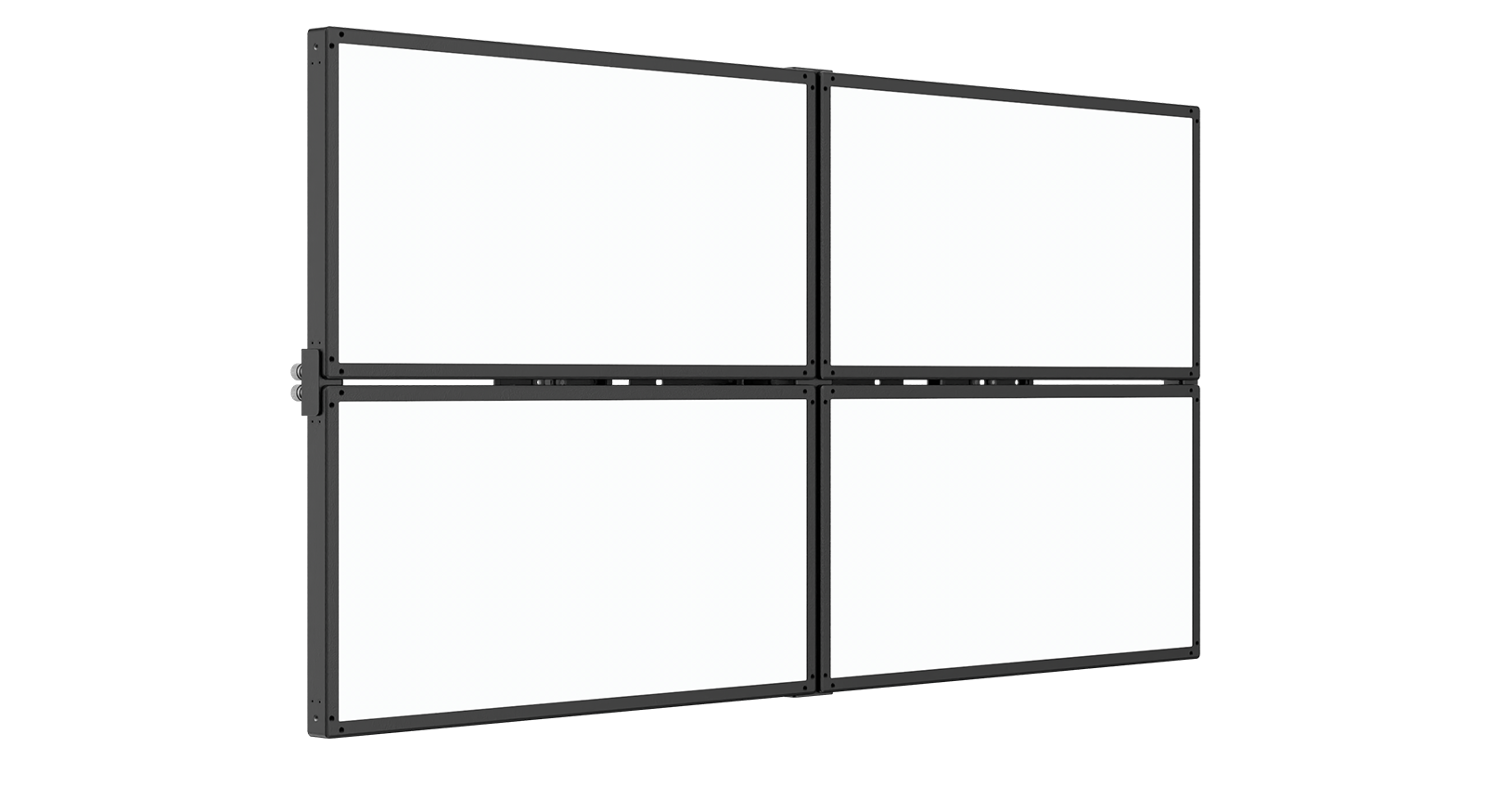

Multi Panel Configuration 2x1 Horizontal, 2x1 Vertical, 2x2 Grid (requires optional mounting accessories) |
|||
| Cooling System Passive cooling |
Estimated LED Lifetime 50,000 hours (L70) |
|||
| Ambient Temperature
Operation -20°C ~ +40°C (-4ºF ~ +104°F) |
Estimated Color Shift
Over Lifetime (CCT) ± 5% |
|||
| Color Black |
Weight 3.15 kg (6.95 lb) |
|||
| Material Alluminium Alloy (housing) |

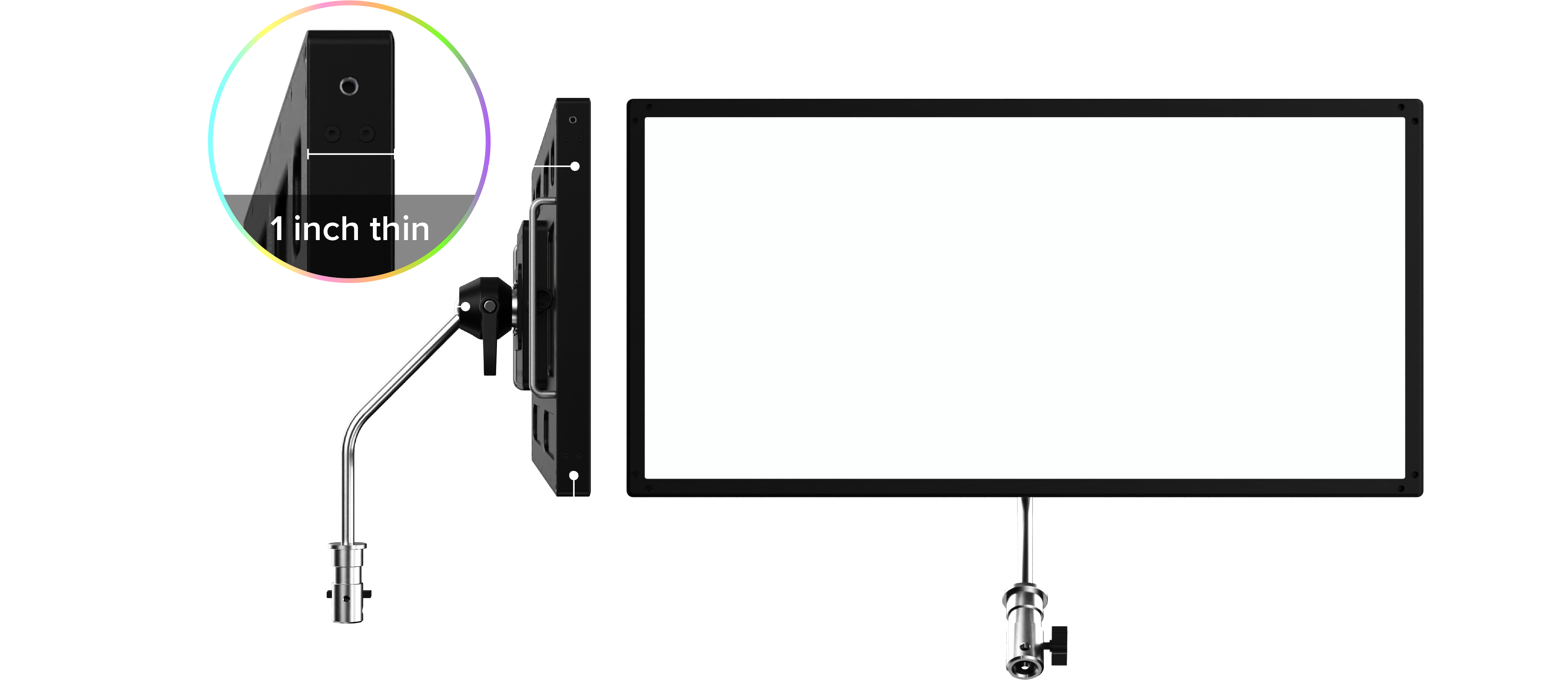

Measurements (HxWxL) 300 x 600 x 46 mm (11.81 x 23.62 x 1.81 in), edge thickness 26mm (1 inch) only |
|||
ZOLAR® Blade 60C Controller Unit
|
DC Input 36~48V, 4.16A maximum |
Power Consumption 140W maximum |
|||
| Battery Input V-Mount battery, 14.4~28.8V (Gold Mount option to be followed) |
||||
| Multi Light Sync ZolarLink - Multi Light Sync Protocol, up to 16 groups with 60 units max per group (wireless); 32 units max per group (cable) |
Remote Device
Management (RDM) DMX Setup, Standard RDM commands | |||
| Controller Cable 8M length (standard), 16M length (optional) |
DMX 5-Pin XLR DMX In/Out |
|||
| Control Methods LumenRadio CRMX, Wi-Fi, Bluetooth, ZOLAR® Mobile App, Art-Net 4 & sACN protocol |
||||
| Weight 0.89 kg (1.96 lb) |
Measurements (HxWxL) 190 x 125 x 75 mm (7.48 x 4.92 x 2.95 in) |
|||
AC DC Power Adapter 36V
|
AC Input 110~240V |
DC Output 36V, 4.16A maximum |
ZOLAR® Blade 60C Basic Kit
|
Measurements (HxWxL) 375x700x355mm (14.76x27.56x13.98 in) |
Weight (Full Package) 9.20kg (20.28lb) |
* All weight and dimensions are rounded values.
