Z CAM E2-S6 Mark II
Super 35mm CMOS
6K 60FPS & 4K 100 FPS Max
Z CAM E2-F6 Mark II
Full Frame CMOS
6K 60FPS & 4K 120 FPS Max
Z CAM E2-M4 Mark II
4/3" CMOS
4K 160 FPS Max

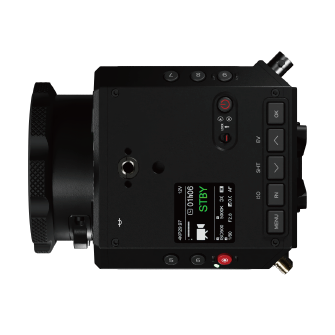

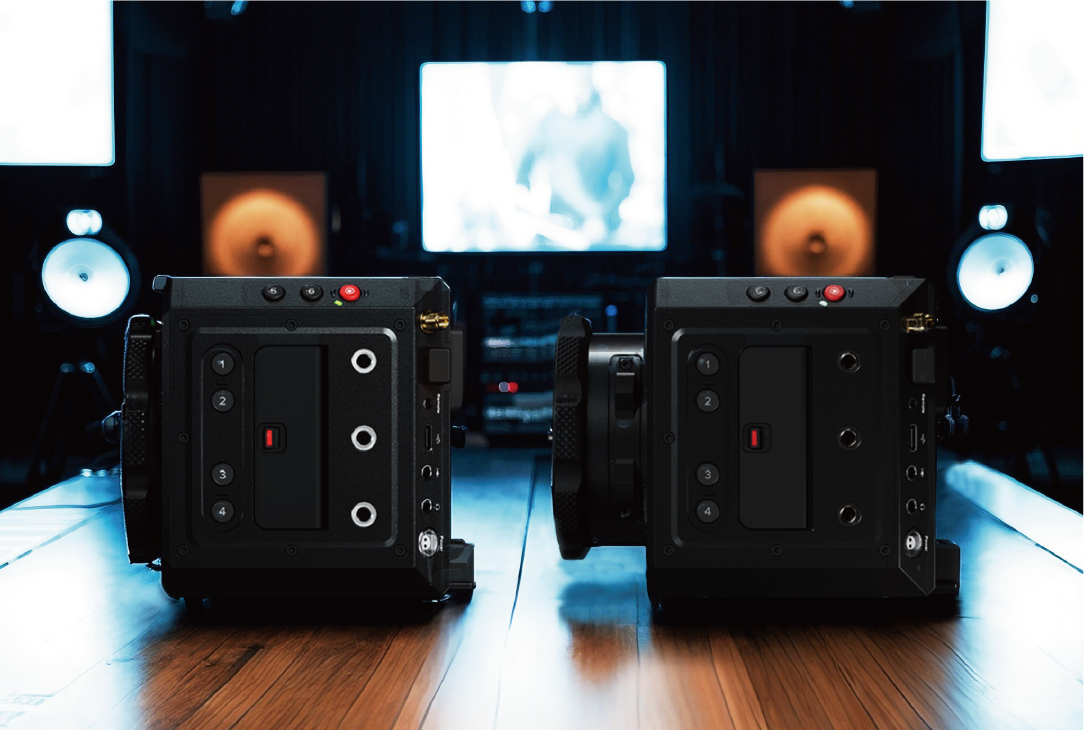

From Good to Better
|

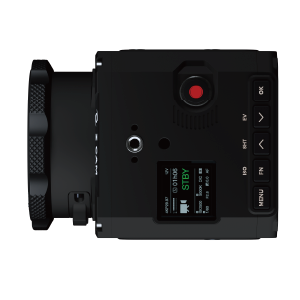

E2 |
E2 Mark II |
|
HDMI only* |
3G-SDI + HDMI |
|
Adapter required |
BNC Connector |
|
No |
Yes |
|
No |
PoE+ |
|
No* |
Yes |
|
NP-F compatible |
Mini V-Lock |
|
CFast 2.0 |
CF Express Type B |
*except Z CAM E2-F6 Pro model

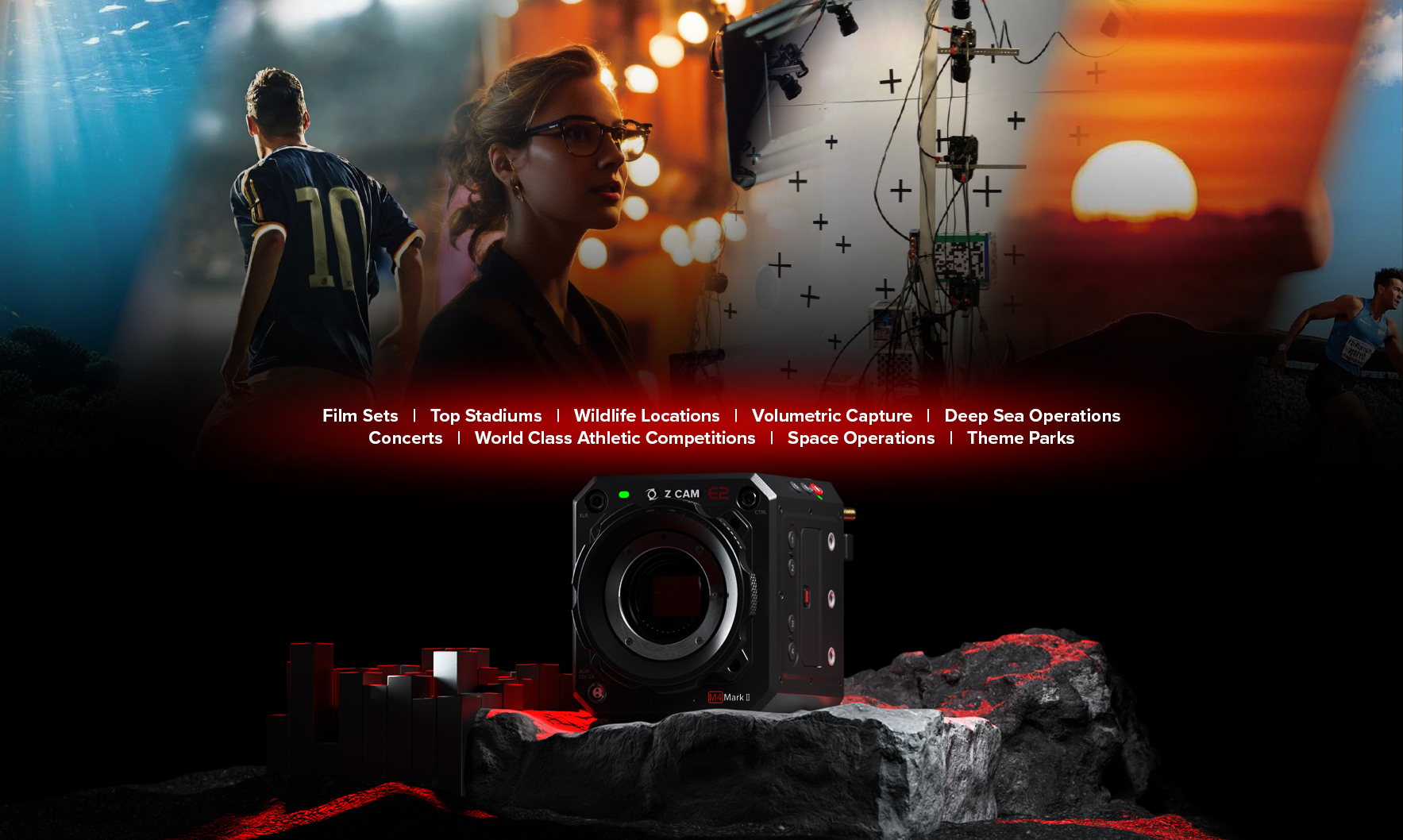

Probably the Most Versatile Camera
You might not have seen the Z CAM E2 at these venues, but you've likely watched the stunning images captured by it.
Multiple Camera Synchronization
Z CAM has been widely adopted in many multiple camera applications worldwide due to its high sync precision, open API and reliability.
Z CAM EzLink Sync
- All cameras are connected to a network switch for Z CAM EzLink Sync.
- Once connected, one camera must be designated as the master, with the others set as slaves.
- Z CAM EzLink ensures precise synchronization, maintaining a tolerance of no more than 0.5ms.
Z CAM PixelLink*
- Z CAM PixelLink Sync (Master/Slave) requires all cameras to be connected in a daisy chain using Z CAM sync cables.
- Cameras are interconnected using Cat 6 Ethernet cables.
- Ensuring perfect line sync precision.
* Only available on Z CAM E2 model

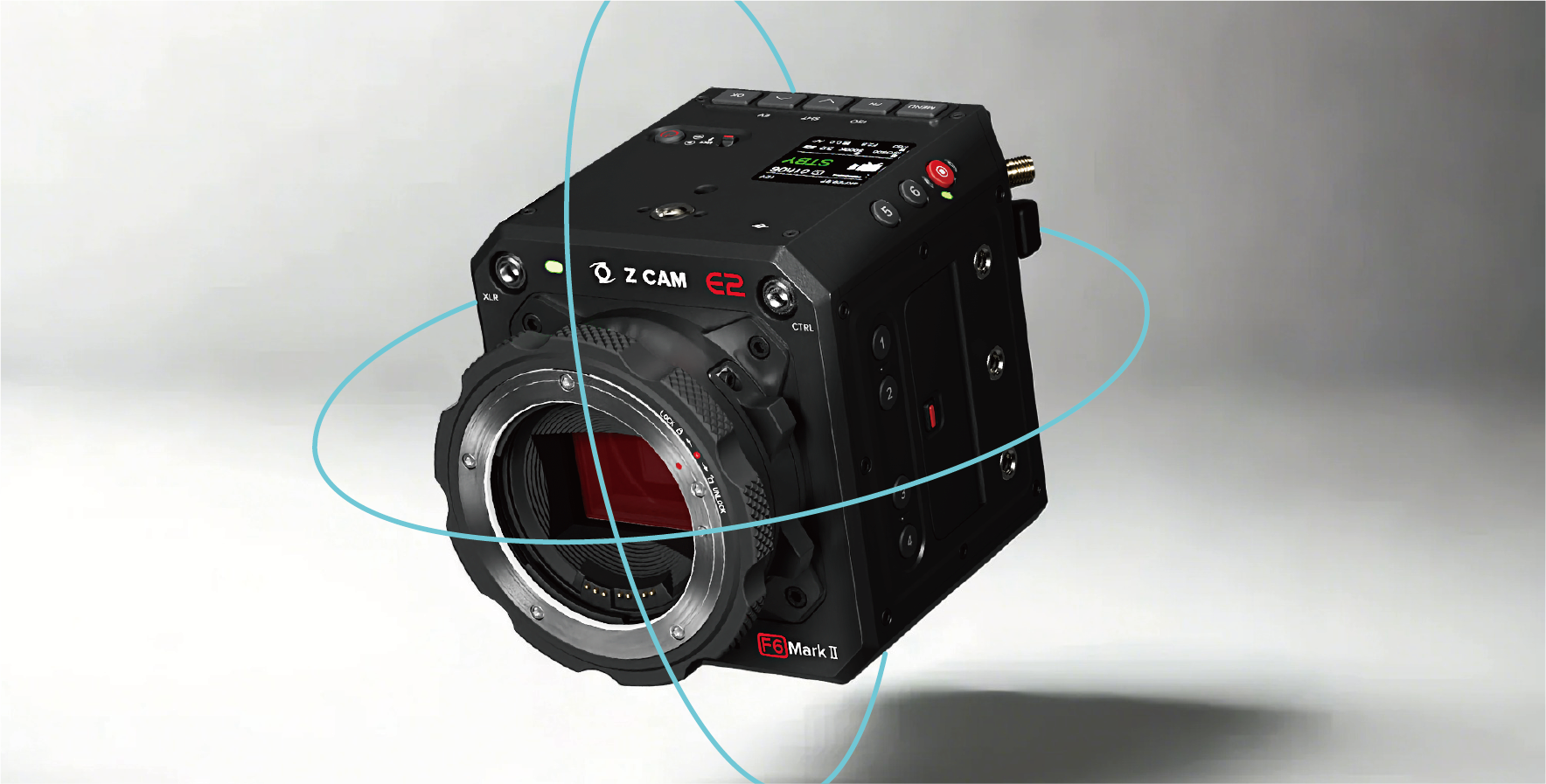

Built in Gyroscope Sensor
IP Streaming is the Future
Z CAM supports a number of streaming protocols. Easily accessible through the built-in web client.
Open API & SDK
- Full set open API.
- Facilitates easier secondary development.
https://github.com/imaginevision/Z-Camera-Doc/tree/master/E2
Compact & Robust
- Compact form factor.
- Full metal body construction.
- Weighted 1060g only*.
* measured on Z CAM E2-M4 Mark II model (without lens and battery)

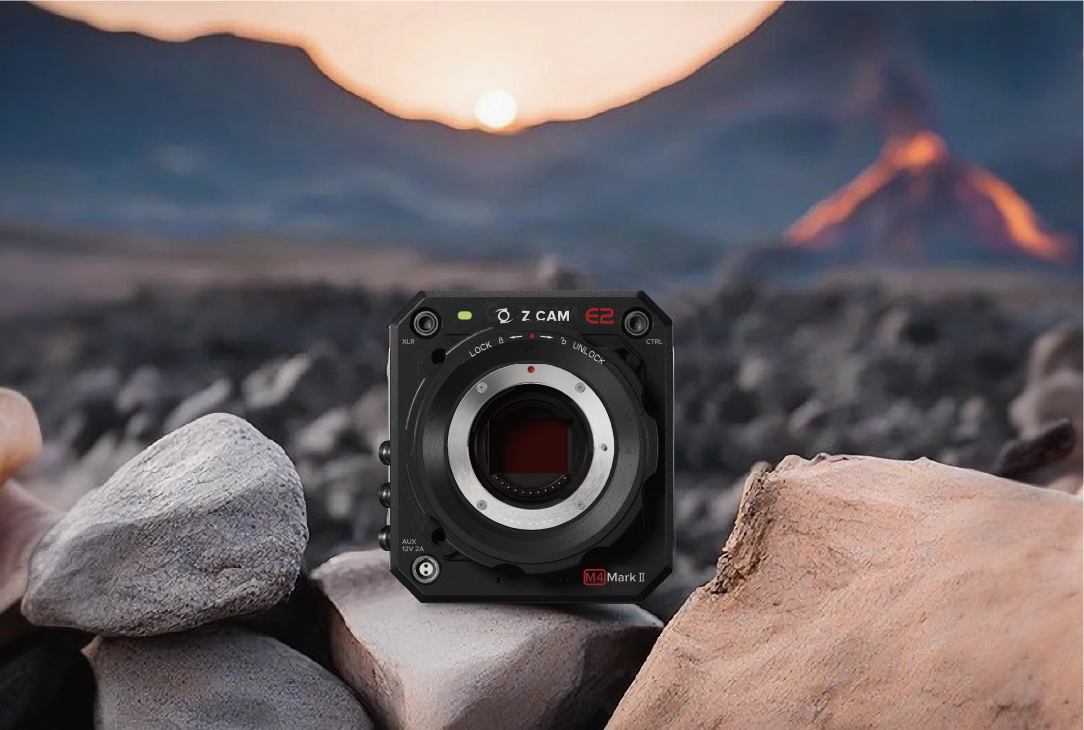

Durability & Reliability
Both the Z CAM E2 and the Z CAM E2 Mark II series are engineered for sustained, long-term recording and streaming.
Fanless design. No active cooling.
Interchangeable Mounts
- Z CAM E2-M4 Mark II : MFT Mount (Active Lock)
- Z CAM E2-S6 Mark II : EF Mount (Active Lock)
- Z CAM E2-F6 Mark II : EF Mount (Active Lock)
Optional Z CAM Interchangeable lens mount:
- Z CAM PL Mount (Active Lock)
- Z CAM LPL Mount (Active Lock)
- Z CAM M Mount (Active Lock)
Stunning Image Quality
Go-to camera for many big film and documentary productions.
- Entrusted by many well-known DOPs and Directors.
- Qualified as A camera.
- Perfect for B camera.
Technical Specifications
Camera
Sensor Type
Full Frame CMOS Sensor
Sensor Size
35.9 x 24.0 mm (Diagonal 43.3mm)
Effective Pixels
24.63M
Dynamic Range
15 stops
Lens Mount
EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
30fps max @ Open Gate (6064x4040)
48fps max @ C6K (6064x3196)
60fps max @ 6K 2.4:1 (6064x2560 )
48fps max @ 6K (5760x3240)
30fps max @ 5K 4:3 (5376x4032)
60fps max @ C5K (5120x2700)
30fps max @ 5K 6:5 (4848x4040)
60fps max @ 5K (4800x2700)
50fps max @ 4K 4:3 (4096x3072)*
30fps max @ C4K 3:2 (4096x2732)
90fps max @ C4K (4096x2160) *
120fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4K 6:5 (4080x3400)
90fps max @ 4K (3840x2160)
170fps max @ S16 16:9 (2112x1188)
170fps max @ 1080P (1920x1080)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode.
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 2500
Shutter
"Shutter Speed: Auto, Manual (1”~ 1/8000”)
Shutter Angle: Auto, Manual (1° ~ 360°)"
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness / Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Storage
Storage Media
CF Express Type B
File System:
exFAT
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 2A (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.21kg (with EF mount)
Weight - Full Package
1.55kg
Dimensions (HxWxL) - Camera
105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
Camera
Sensor Type
Super 35mm CMOS Sensor
Sensor Size
23.5 x 15.7 mm (Diagonal 28.3mm)
Effective Pixels
26.11M
Dynamic Range
14 stops
Lens Mount
EF Mount w/active lock (interchangeable to optional PL, LPL and M)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
30fps max @ Open Gate (6244x4168)
48fps max @ C6K (6144x3240)
60fps max @ 6K 2.4:1 (6144x2592)
48fps max @ 6K (5760x3240)
30fps max @ 5K 4:3 (5552x4164)
50fps max @ 5528x3112
60fps max @ C5K (5120x2700)
30fps max @ 5K 6:5 (4992x4160)
60fps max @ 5K (4800x2700)
30fps max @ C4K 3:2 (4096x2732)
30fps max @ C4K Low Noise (4096x2160)
75fps max @ C4K (4096x2160)
100fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4000x4000
30fps max @ 3840x3840
30fps max @ 4K Low Noise (3840x2160)
75fps max @ 4K (3840X2160)
50fps max @ 3456x3456
90fps max @ S16 16:9 (3392x1908)
120fps max @ 2.8K (2868x1512)
120fps max @ 1920x1080
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as C6K resolution mode.
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (400 ~ 128000), Dual Native ISO: 400 / 1250
Shutter
Shutter Speed: Auto, Manual (1”~ 1/8000”)
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness /
Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Storage
Storage Media
CF Express Type B
File System:
exFAT
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 2A (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.21kg (with EF mount)
Weight - Full Package
1.55kg
Dimensions (HxWxL) - Camera
105 x 98 x 136.5 mm / 4.13 x 3.86 x 5.37 inch (EF Mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
Camera
Sensor Type
4/3" CMOS Sensor
Sensor Size
19.0 x 13.0 mm (Diagonal 21.63mm)
Effective Pixels
10.71M
Dynamic Range
13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
Lens Mount
MFT Mount w/active lock (interchangeable)
Microphone
Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate
30fps max @ C4K Low Noise (4096x2160)
120fps max @ C4K (4096x2160)
150fps max @ C4K 2.4:1 (4096x1728)
30fps max @ 4K Low Noise (3840x2160)
120fps max @ 4K (3840x2160)
160fps max @ 4K 2.4:1 (3840x2160)
30fps max @ 3696x2772 Low Noise
60fps max @ 3696x2772
60fps max @ 3312x2760
170fps max @ S16 16:9 (2752x1548)
160fps max @ S16 (2704x1600)
240fps max @ 1920x1080
Video Encoder
H.264 / H.265 / ProRes 422 Proxy / ProRes 422 LT / ProRes 422 / ProRes 422 HQ / ZRAW*
RAW over HDMI
ProRes RAW (using Atomos Ninja V); BRAW (using BMD VideoAssist)
Color Bit-depth
10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format
16-bit 48 kHz
Audio Encoder
AAC / PCM (for MOV only)
File Format
MOV / MP4
Record Mode
Video / Time Lapse Video / Still Image Capture
Settings
ISO
Auto, Manual (500 ~ 102400), Dual Native ISO: 500 / 2500
Shutter
Shutter Speed: Auto, Manual (1”~ 1/8000”) Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance
Auto, Preset, Manual (2300K ~ 30000K)
Focus Mode
MF / AF / CAF
Brightness / Contrast / Saturation / Sharpness /
Gamma Setting
Image Config
Rec.709, Z-Log2, Flat, Concert, Vivid 0, Vivid 1, Vivid 2, HLG, Gamma
Time Code
Current Time / Manual Input / External Input
Storage
Storage Media
CF Express Type B
File System:
exFAT
Connectivity
HDMI
HDMI 2.0 Type A (up to 4K DCI 60p, 10-bit 4:2:2)
SDI
3G-SDI
Timecode In
LTC Timecode Input via BNC
Genlock
BB/Tri-Level Genlock Input via BNC
USB
USB 3.0 Type C for camera control & data transfer only
Remote Port
2.5 mm jack socket (Sony LANC compatible)
Audio In
3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio Out
3.5 mm stereo jack socket
Wi-Fi
5G, up to 802.11n, external antenna port
CTRL
Serial port
Ethernet
Gigabit Ethernet port
Power
Battery
Mini V-Lock 14.8V (Battery not included)
Power Input
DC 12~18V (2-pin LEMO socket) / PoE+ (802.3at)
Power Output (AUX)
DC 12V 2A (2-pin LEMO socket)
Power Consumption
50W maximum, not inclusive of AUX power consumption
Physical
Camera Body
Aluminum Alloy
Weight - Camera (w/o Lens)
1.06 kg (with MFT mount)
Weight - Full Package
1.40kg
Dimensions (HxWxL) - Camera
105 x 98 x 116 mm / 4.13 x 3.86 x 4.57 inch (MFT mount)
Dimensions (HxWxL) - Package
145 x 195 x 162 mm / 5.71 x 7.68 x 6.38 inch
Environment
Storage Temperature
-20 °C ~ 60 °C
Operation Temperature
0 °C ~ 40 °C
