12G SDI
Genlock Support
5" Touch Screen
ZBlade 1TB: USD$299.00 ZBlade 2TB: USD$499.00 ZBlade 4TB: USD$1,099.00

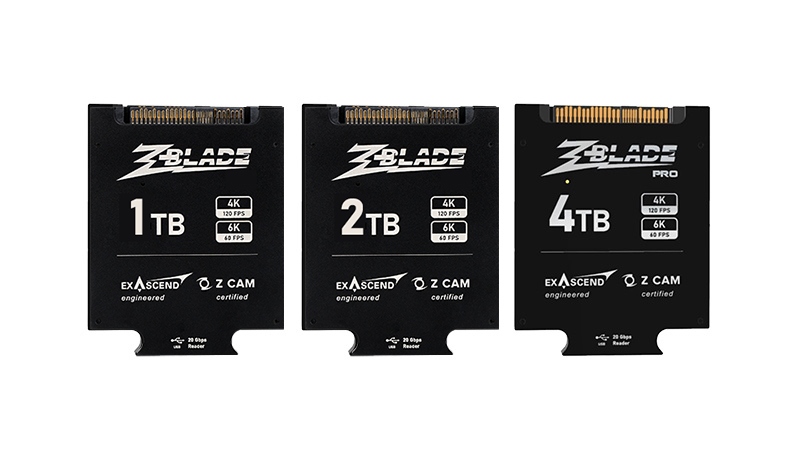

ZBlade
Custom media designed for use on

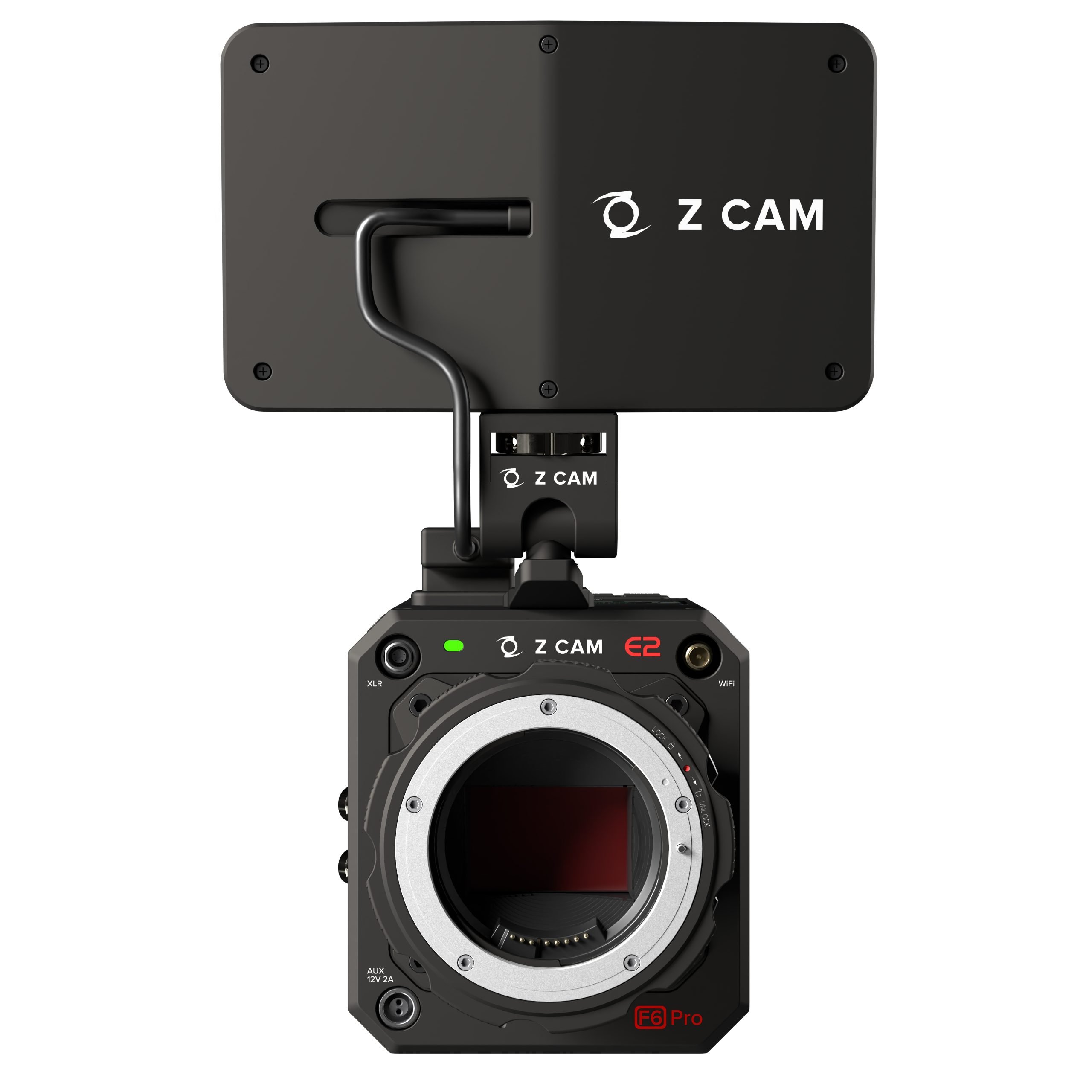

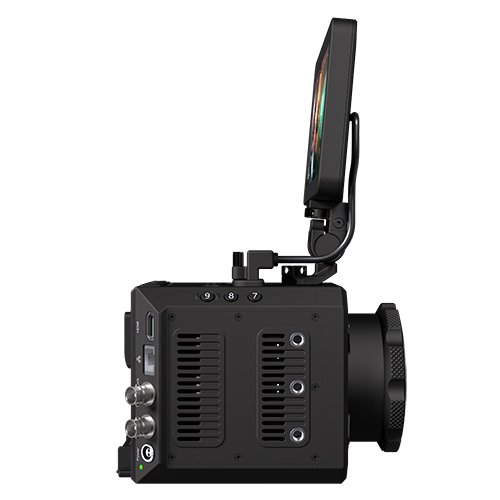

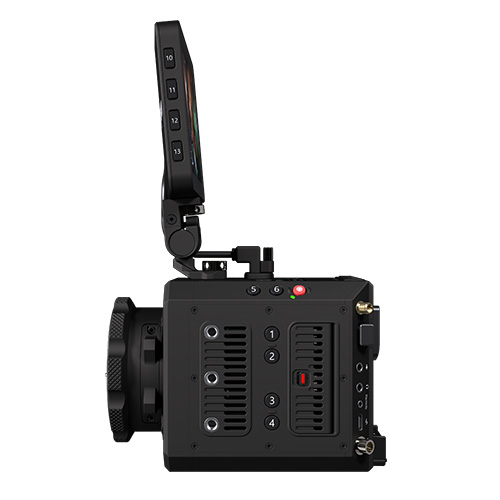

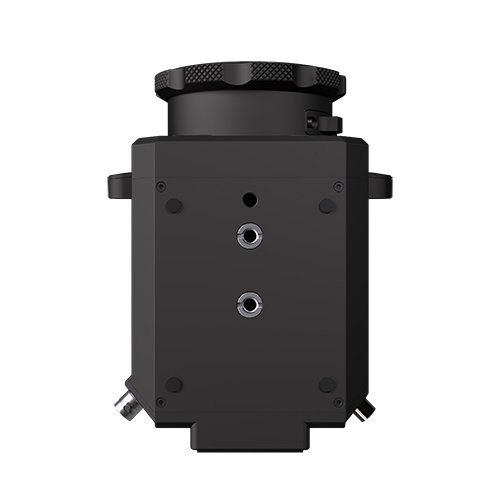

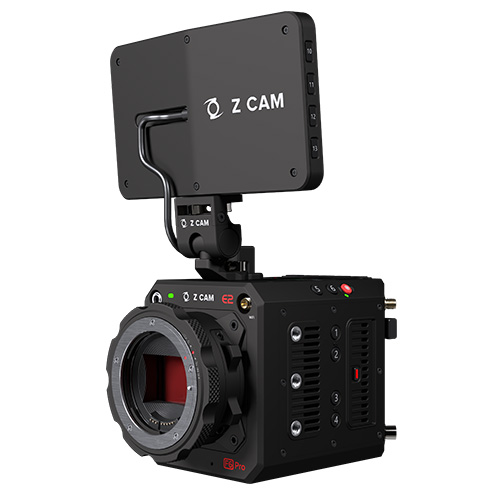

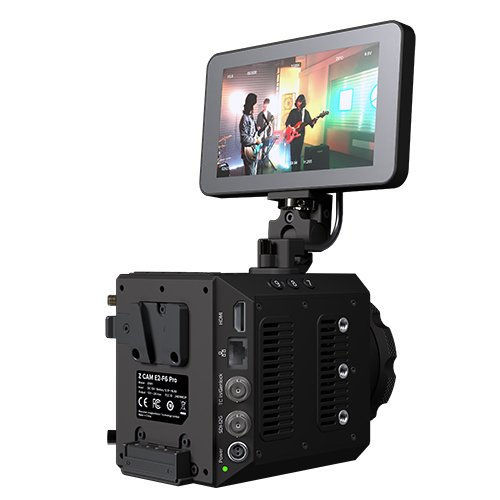

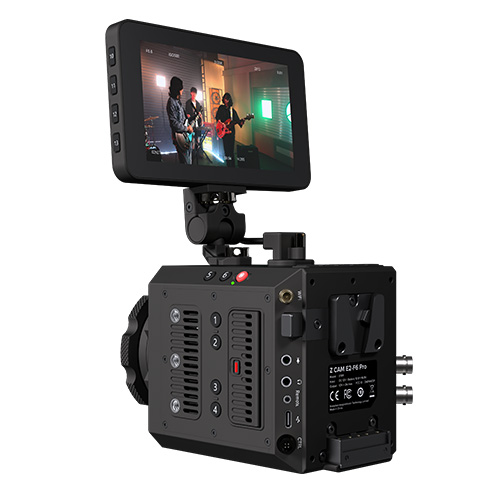

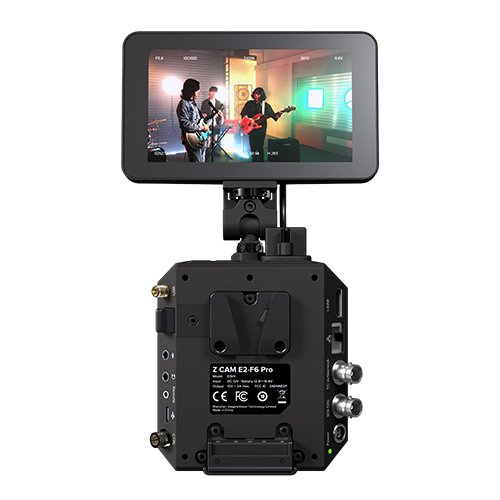

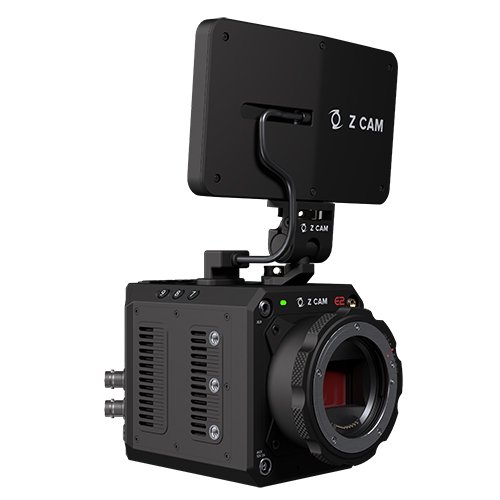

Z CAM E2-F6 Pro
Engineered by Exascend, certified by Z CAM.
Custom media designed for use on
Z CAM E2-F6 Pro
Engineered by Exascend, certified by Z CAM.
- Available in 1TB, 2TB & 4TB memory sizes
- Large storage capacity, affordable price
- Capture ProRes 422 HQ, 4K 120fps, 6K 60fps
- Hardware RAID ECC protection
- Optimized consistent media capture to ensure no frame drop
- USB 3.2 Gen 2x2: 20 Gbps built-in reader for lightning fast file transfer
- Worry free data recovery service by Exascend
Technical Specifications
Disclaimer: All product features and technical specifications stated are subjected to Z CAM’s sole interpretation and explanation. Specifications are subject to change without notice.Camera
- Sensor Type
- Full Frame CMOS Sensor
- Sensor Size
- 37.09 x 24.75 mm
- Effective Pixels
- 26M
- Dynamic Range
- 15 Stops
- Lens Mount
- EF mount (with optional M, MFT, PL and LPL mount accessory)
- Resolution & Max Frame Rate
- 6064x4040 @30fps max (Open Gate)
6064x3196 @48fps max (C6K)
6064x2560 @60fps max (6K 2.4:1)
5760x3240 @48fps max (6K UHD)
5376x4032 @30fps max (5K 4:3)
5120x2700 @60fps max (C5K)
4848x4040 @30fps max (5K 6:5)
4800x2700 @60fps max (5K UHD)
4096x3072 @30fps max (4K 4:3)
4096x2160 @90fps max (C4K)
4096x1728 @120fps max (C4K 2.4:1)
4080x3400 @30fps max (4K 6:5)
4064x2712 @60fps max (C4K 3:2)
3840x2160 @90fps max (4K UHD) *
2112x1188 @170fps max (S16 16:9)
1920x1080 @120fps max (FHD)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode - Video Encoder
- ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ
- Color Bit-depth
- 10 bit, Z-Log2
- Audio Format
- 16-bit 48 kHz
- Audio Encoder
- AAC / PCM (for MOV only)
- File Format
- MOV
- Record Mode
- Video / Time Lapse Video
- ISO
- Auto, Manual (400 ~ 51200), Dual Native ISO: 400 / 2500
- Shutter Speed
- Auto, Manual（1/24~1/8000”）
Shutter Angle: Auto, Manual (1° ~ 360°) - White Balance
- Auto, Preset, Manual (2300K ~ 30000K)
- Focus Mode
- MF
- Image
- Brightness / Contrast / Saturation / Sharpness
- Image Config
- Rec.709, Z-log2, Flat, Concert, HLG
- Time Code
- Current Time / Manual Input
- Storage Media
- CFast 2.0 or ZBlade (custom media)
- File System
- exFAT
Connectivity
- HDMI
- HDMI Type A 2.0
3840x2160/4096x2160/1920x1080 @23.94/24/25/29.97/50/59.94
YUV 422 10bit
48K 2ch audio - SDI
- 12G BNC
3840x2160/4096x2160/1920x1080 @23.94/24/25/29.97/50/59.94
YUV 422 10bit
48K 2ch audio - Time Code In
- LTC, share the same BNC with Genlock
- Genlock
- BB/Tri-level
25/29.97/50/59.94
Share the same BNC with Time Code In - USB
- USB 3.0 Type C for camera control & data transfer only
- COM
- 1 x Serial Port
- Remote Port
- 2.5 mm jack socket (Sony LANC compatible)
- Audio In
- 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
- Audio Out
- 3.5 mm stereo jack socket
- Wi-Fi
- 5G, up to 802.11n, external dual antenna port
- CTRL
- 1x Serial Control Port
- Ethernet
- Gigabit Ethernet port

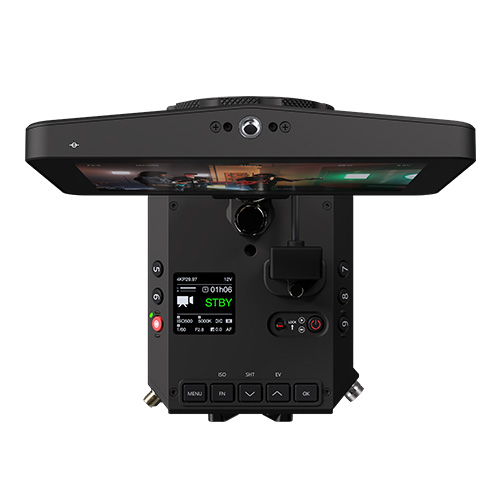

Monitor (Included in standard package)
- Monitor
- 5" Touch Screen LCD Monitor, 1000 Nits
- Resolution
- 1920 x 1080
- Mount
- Top & Bottom 1/4" screw hole with anti-rotational pin (mount holder included in standard package)
- Power
- Through dedicated control cable to camera body
- Touchscreen
- Capacitive touch panel, calibration to Rec.709
Power
- Battery
- V-Mount 14.8V (Battery not included)
- Power Input
- DC 12~18V (2-pin LEMO socket), with LEMO connector
- Power Output (AUX)
- DC 12V 2A (2-pin LEMO socket)
- Power Consumption
- 50W maximum, not inclusive of AUX power consumption
Physical
- Camera Body
- Aluminium Alloy
- Weight - Camera
- 1.39kg (with EF mount)
- Weight - Camera + Monitor
- 1.68kg (with EF mount)
- Dimensions (HxWxL) - Camera
- 108.5 x 107.9 x 156.7mm (with EF mount)
- Dimensions (HxWxL) - Monitor
- 90.6x152.2x26.3mm
Environment
- Storage Temperature
- -20 °C ~ 60 °C
- Operation Temperature
- 0 °C ~ 40 °C
