PTZ Camera with Stunning Image Quality

Z CAM P2-R1 series[1]

1/1.3”[2]
Large Size Sensor

PDAF
Phase Detection Auto Focus

Auto Framing
AI Technology

NDI Bridge
Remote Connection



1: It includes four models: P2-R1 18x zoom, P2-R1N 18x zoom, P2-R1 24x zoom, and P2-R1N 24x zoom.
Among them, the models marked with "N" are versions that support the NDI protocol.

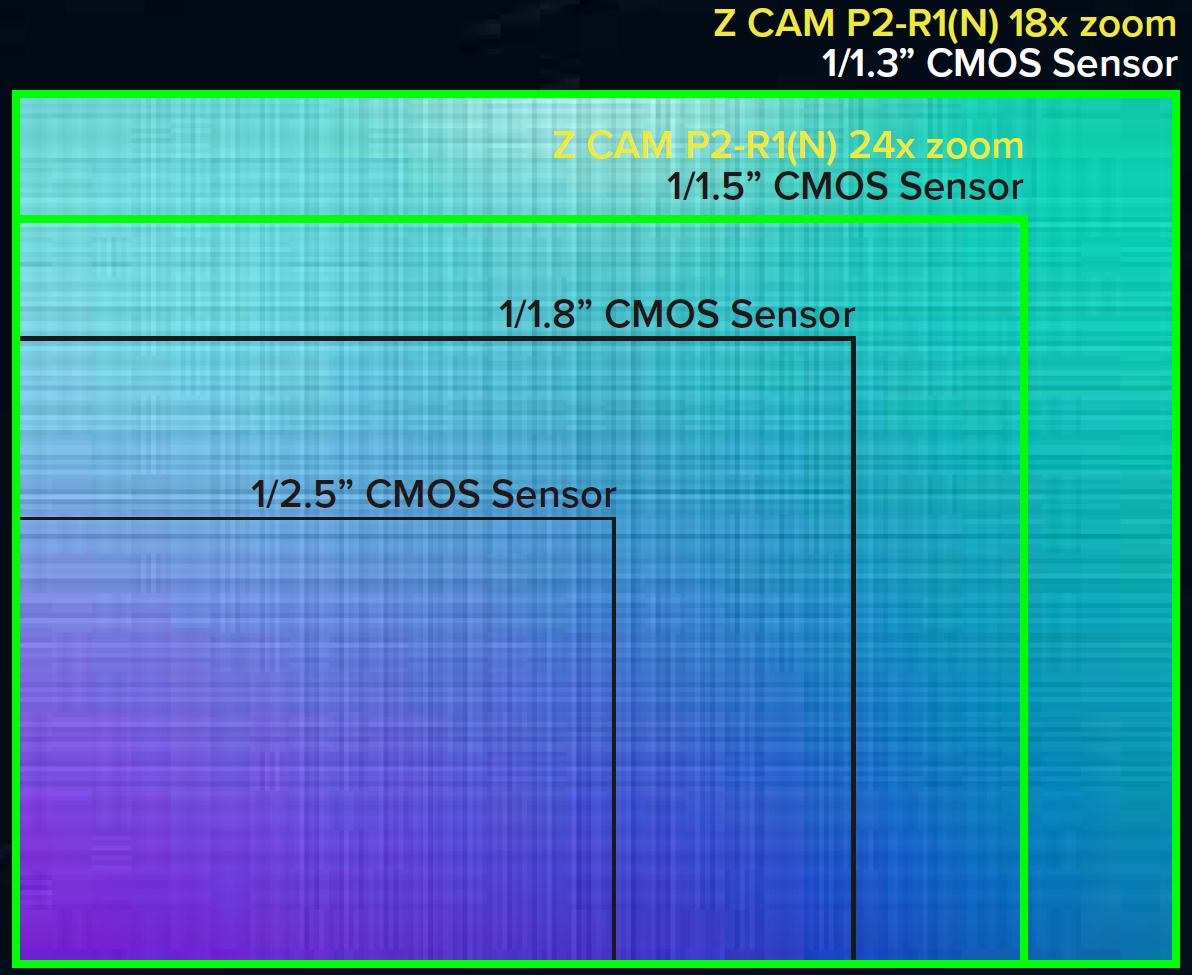

2: The P2-R1 (N) 18x zoom is equipped with a 1/1.3-inch CMOS sensor, while the P2-R1 (N) 24x zoom is equipped with a 1/1.5-inch CMOS sensor.

Large Size CMOS Sensor

PDAF - Phase Detection Auto Focus

Quick & Accurate

State of the art Auto Focus

Stunning Image Quality

Z CAM Color Science

Cinema Camera

f/1.6 Large Aperture

Shallow depth of field

18x/24x Optical Zoom


Ultra-Smooth PTZ Control


Pan: 350° (±175°)

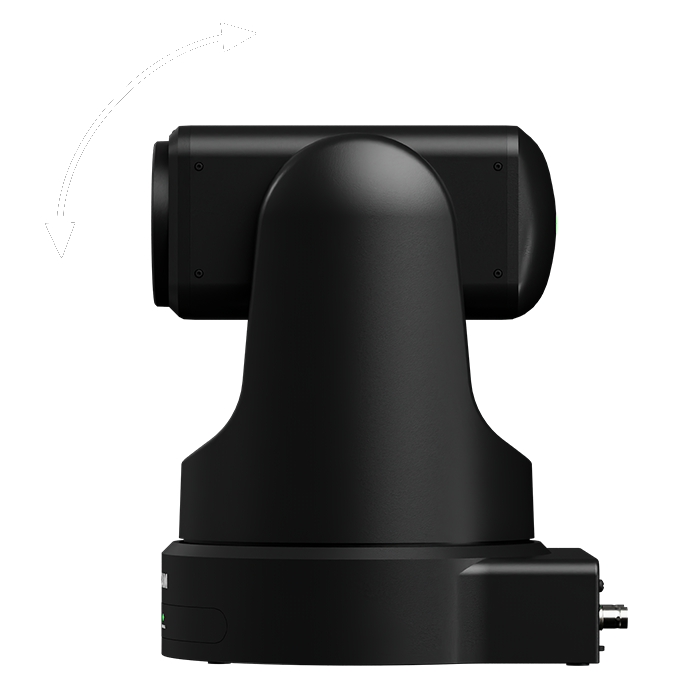

Tilt: 240° (-30° to +210°)



AI Auto Framing

IP Streaming

H.264, H.265, RTMP/RTMPS, RTSP, SRT, SSP, UVC & NDI_HX3*.

NDI_HX3

Real-Time Streaming Protocol

Real-Time Messaging Protocol

Secure Reliable Transport

*Z CAM P2-R1N model supports NDI HX3.

NDI is a registered trademark of NewTek, Inc. in the United States and/or other countries.

I/O

Media/Memory Card Slot

SD (4K 60fps max, H.265, 8-bit color)



Video I/O

1x BNC (3G-SDI) Output

1x RJ45 (IP) Output

1x HDMI Output

1x USB-C 3.0 Gen 1 Output



Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input



Other I/O

1x BNC (Genlock) Input 1x RJ45 (VISCA / RS-422) Input

1x RJ45 (VISCA / RS-422) Output

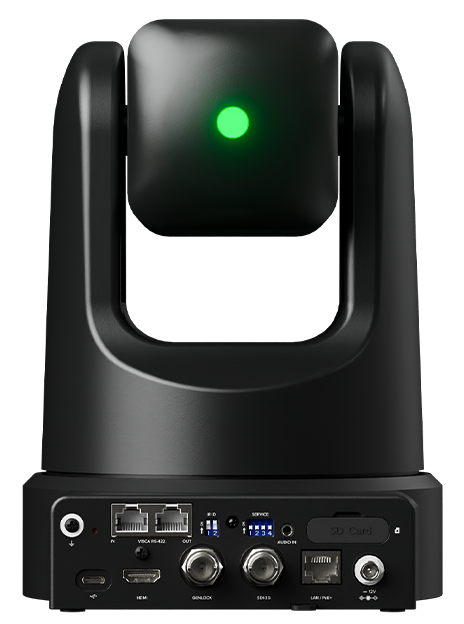

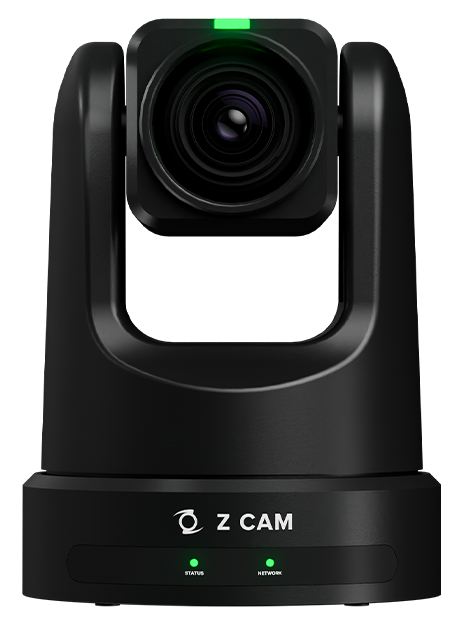

Tally Lights
Free-D for AR/VR Precision
Web Control Interface

What's in the Box


  • Z CAM P2-R1 PTZ Camera Body
  • 12V AC-DC Power Adapter & AC Cable
  • Ceiling Mount Bracket
  • Remote Controller

Technical Specifications



Imaging

Image Sensor
P2-R1(N) 18x zoom: 1/1.3" CMOS sensor
P2-R1(N) 24x zoom: 1/1.5" CMOS sensor		 Image Stabilization
E.I.S.
Horizontal Resolution (TV Lines)
2160 TV Lines		 Focus Control
PDAF (Phase Detection Auto Focus), Manual Focus
Built in ND Filter
No		 Image Profile
Rec 709, Cine, High Contrast, Vivid, Concert, Gamma

Exposure Control

Shutter Speed
1/8000 to 1 second		 Gain
P2-R1(N) 18x zoom: 0 to 24 dB (ISO 800 to 25600)
P2-R1(N) 24x zoom: 0 to 36 dB (ISO 200 to 12800)
White Balance
Auto
Incandescent
Cloudy
D10000
Fluorescent
Indoor
Daylight
Shade
Manual

Lens

Focal Length
P2-R1(N) 18x zoom: 36mm to 648mm (35mm equivalent)
P2-R1(N) 24x zoom: 32mm to 768mm (35mm equivalent)		 Maximum Aperture
P2-R1(N) 18x zoom: f/1.6 (W) / f/3.5 (T) to f/11
P2-R1(N) 24x zoom: f/1.6 (W) / f/4.5 (T) to f/7.1
Optical Zoom Ratio
P2-R1(N) 18x zoom: 18x
P2-R1(N) 24x zoom: 24x		 Minimum Focus Distance
P2-R1(N) 18x zoom:
Wide - 2.68inch / 6.8cm, Tele - 75.98inch / 193cm
P2-R1(N) 24x zoom:
Wide - 3.62inch / 9.2cm, Tele - 46.85inch / 119cm
Max Digital Zoom
P2-R1(N) 18x zoom: 36x (in 1080p)
P2-R1(N) 24x zoom: 48x (in 1080p)		 ND
No
Field of View
P2-R1(N) 18x zoom - Horizontal: 53º to 3.6º
P2-R1(N) 24x zoom - Horizontal: 60º to 3.2º		 OLPF
No

Video Capture

External Recording Modes
HDMI:
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
SDI / BNC:
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080i) at 50/59.94 fps
RJ45 / USB:
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94		 Audio Recording
3.5 mm TRS (Mic in / Line in)
Internal Recording Modes
UHD 4K (3840 x 2160) at 23.98/24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 23.98/24/25/29.97/50/59.94/120fps max		 Broadcast Output
NTSC / PAL
IP Streaming
H.264, H.265, RTMP, RTMPS, RTSP, SRT, SSP, UVC, NDI_HX3*
UHD 4K (3840 x 2160) at 24/25/29.97/50/59.94 fps
HD (1920 x 1080p) at 24/25/29.97/50/59.94

Control

Presets
256 via CGI
100 via VISCA
9 via IR		 Tally Light
Yes
Move Speed
Pan: 0.1 to 180º/sec
Tilt: 0.1 to 180º/sec		 Supported Control Protocols
IR
NDI_HX3*
VISCA over RS-422
VISCA over IP
Web Client
UVC
Movement Range
Pan: 350º (-175º to +175º)
Tilt: 240º (-30º to +210º)		 FreeD
Yes
Movement Accuracy
0.01º

Interface

Media / Memory Card Slot
SD (4K 60fps max, H.265, 8-bit color)		 Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Video I/O
1x BNC (3G-SDI) Output
1x RJ45 (IP) Output
1x HDMI Output
1x USB-C 3.0 Gen 1 Output		 Other I/O
1x BNC (Genlock) Input
1x RJ45 (VISCA / RS-422) Input
1x RJ45 (VISCA / RS-422) Output

Power

PoE Support
PoE+ 802.3at		 Power Consumption
18W maximum
Power I/O
1x Barrel (12V DC) Input

Environmental

Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)

General

Mounting
3/8" Screw Hole + 1/4" Adapter
Desktop / Ceiling		 Environmental Resistance
No
Certifications
CE, FCC, RoHS		 Color
Black

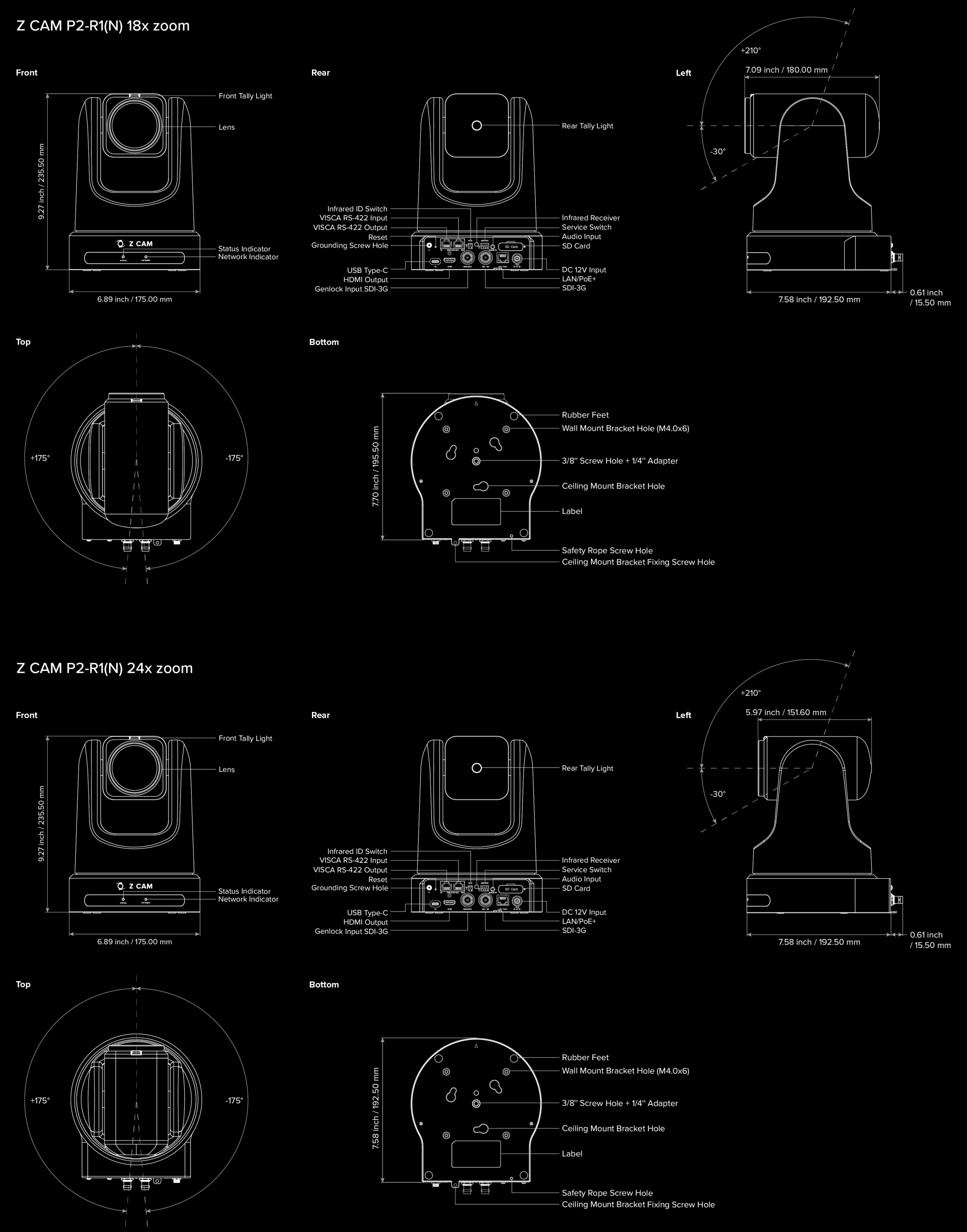

Dimensions (W X H x D)
P2-R1(N) 18x zoom: 6.8 x 9.3 x 7.7" / 175.0 x 235.5 x 195.5mm
P2-R1(N) 24x zoom: 6.8 x 9.3 x 7.6" 175.0 x 235.5 x 192.5mm		 Fanless Design
Yes
Weight
P2-R1(N) 18x zoom:
7.39 lb / 3.35 kg (Camera Unit only), 12.02 lb / 5.45kg (Full Package)
P2-R1(N) 24x zoom:
6.77 lb / 3.07 kg (Camera Unit only), 11.4 lb / 5.17kg (Full Package)



*NDI_HX3 will be offered as an upgrade license, available for separate purchase.



User Manual Command List Z CAM Discovery Tool for Mac Z CAM Discovery Tool for Windows Z CAM Discovery User Guide

Note: All weight and dimensions are rounded values. Dimensions do not include projecting object and rubber feet.

Disclaimer: All product features and technical specifications stated are subjected to Z CAM's sole interpretation and explanation.
Specifications are subject to change without notice.
