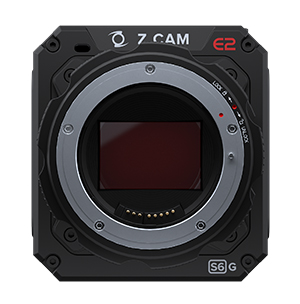

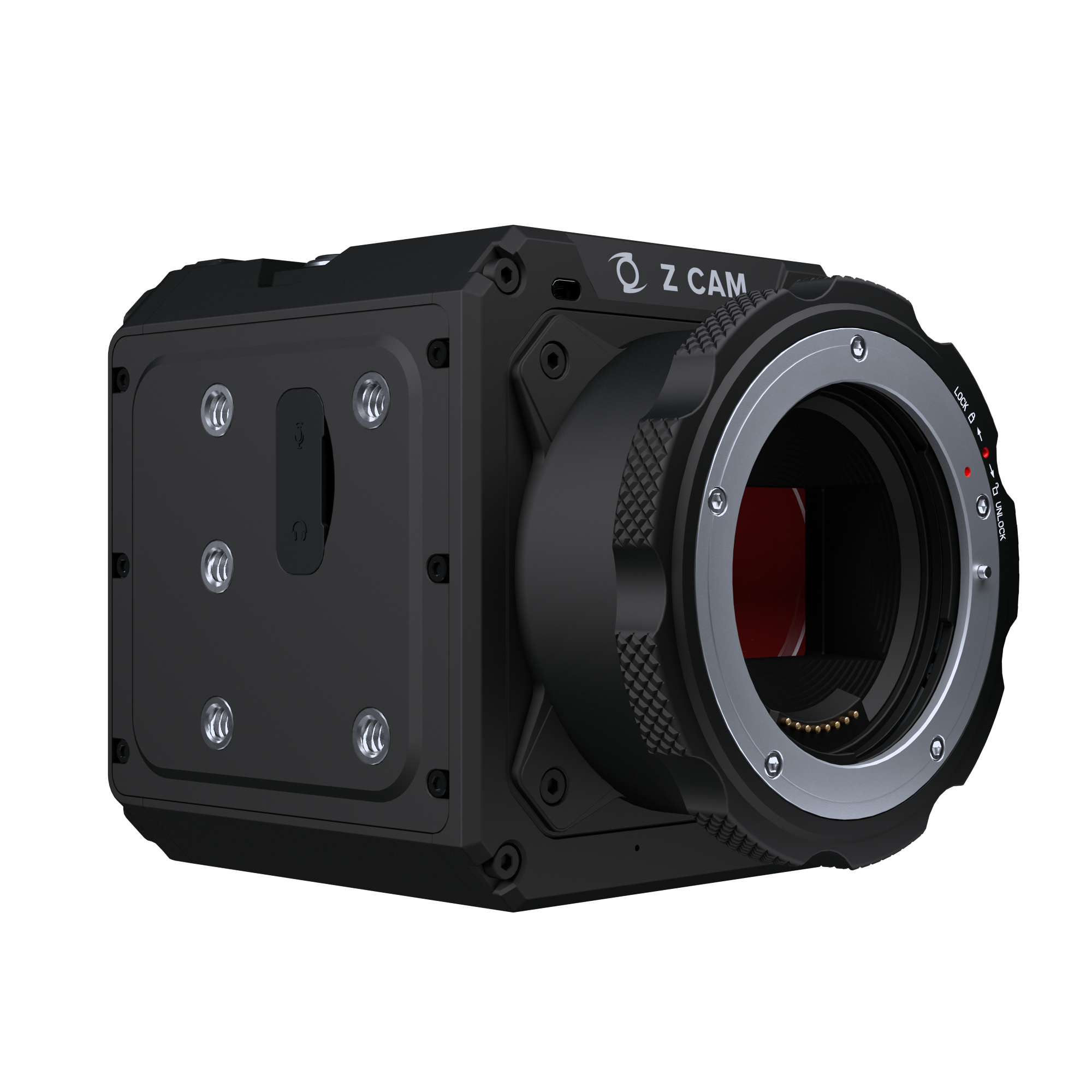

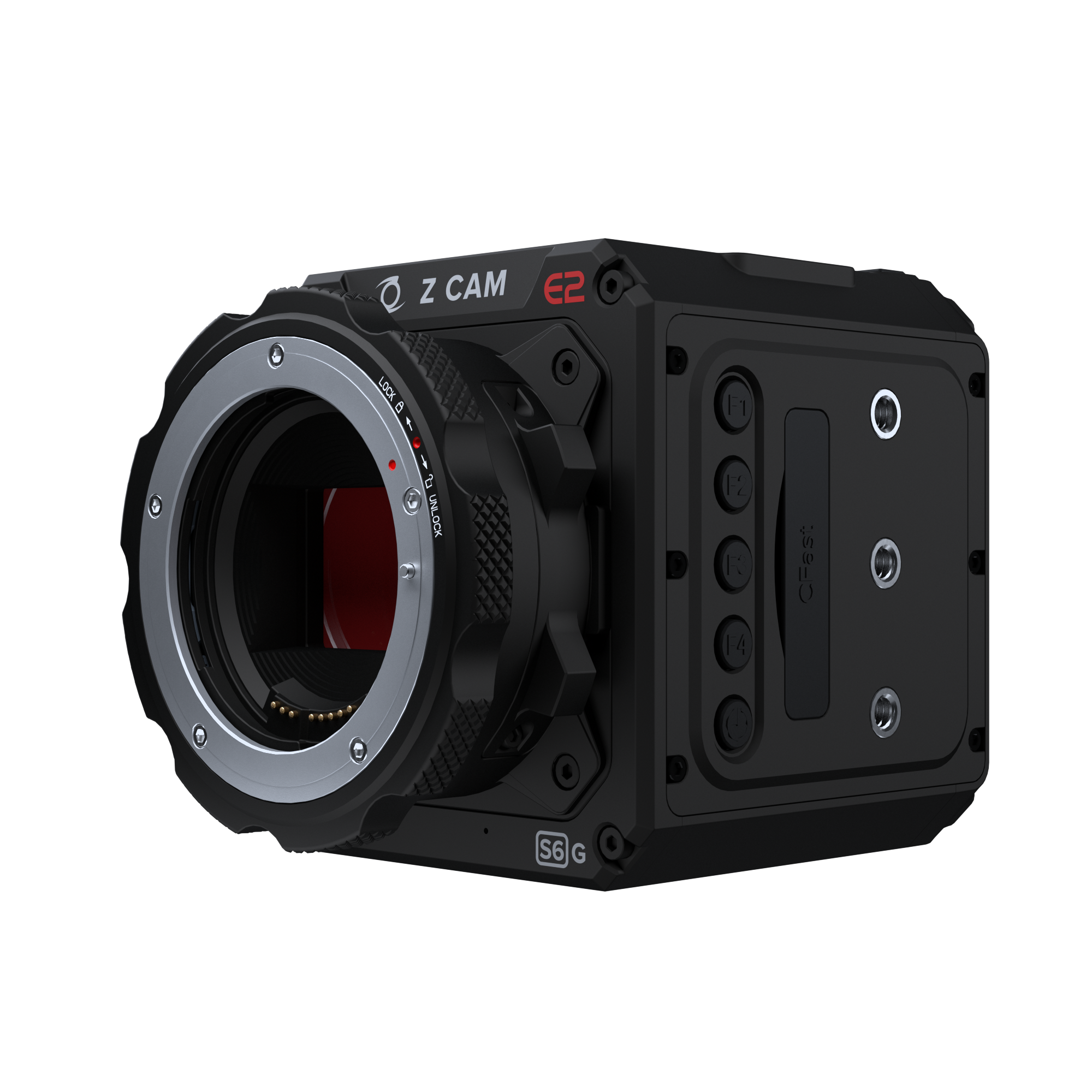

Global Shutter Cinema Camera
Super 35 size CMOS sensor
14 Stops Dynamic Range
Technical Specifications
Disclaimer: All product features and technical specifications stated are subjected to Z CAM’s sole interpretation and explanation. Specifications are subject to change without notice.Camera
- Sensor Type
- Global Shutter CMOS Sensor
- Sensor Size
- 27.9mm (diagonal)
- Dynamic Range
- 14 Stops
- Lens Mount
- EF mount (with optional M, MFT, PL and LPL mount accessory)
- Microphone
- Built-in Stereo Microphone
- Resolution & Max Frame Rate
- 6144x4096 @30fps max (Open Gate)
6144x3240 @30fps max (6K DCI)
5760x3240 @30fps max (6K UHD)
6144x2592 @50fps max (6K 2.4:1)
4096x2160 @56fps max (4K DCI) *
4096x1728 @70fps max (4K DCI 2.4:1)*
3840x2160 @56fps max (4K UHD) *
1920x1080 @70fps max (FHD)
* supersampling / cropping selectable when < 30fps - Video Encoder
- H.265 main 10 profile / H.264 high profile / ProRes 4:2:2 & ProRes 4:2:2 HQ / ZRAW *
* Limited to certain resolution and frame rate combinations
- Bit Rate
- 300 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW
- Color Bit-depth
- 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264) / 10 bit ProRes 4:2:2 & ProRes 4:2:2 HQ
- Audio Format
- 16-bit 48 kHz
- Audio Encoder
- AAC / PCM (for MOV only)
- File Format
- MOV / MP4
- Record Mode
- Video / Time Lapse Video
- ISO
- Auto, Manual (1250 ~ 20000), Native ISO: 1250
- Shutter
- Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°)
- White Balance
- Auto, Preset, Manual (2300K ~ 7500K)
- Focus Mode
- MF / AF / CAF
- Image
- Brightness / Contrast / Saturation / Sharpness
- Image Profile
- Rec.709 / Z-Log2 / FLAT / HLG / Concert / Vivid
- Audio
- Audio In / Audio Out Level
- Time Code
- Current Time / Manual Input
Storage
- Media
- CFAST 2.0
- File System
- exFAT

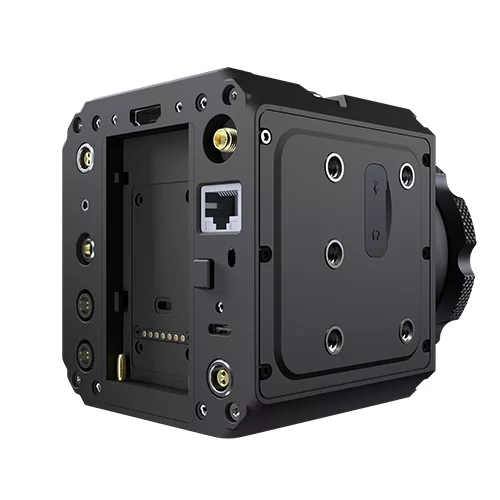

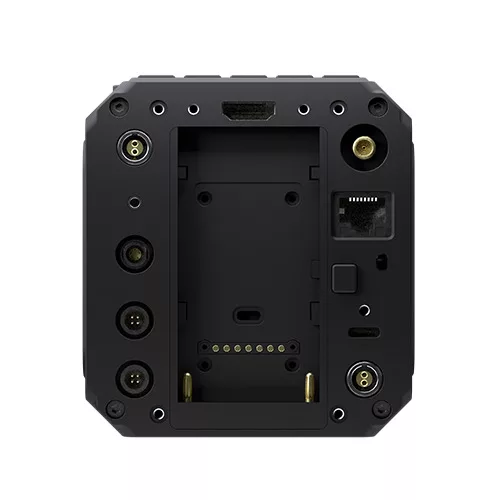

Connectivity
- HDMI
- HDMI 2.0 Type A (video output up to DCI 4K @60fps, 10-bit 4:2:2)
- USB
- USB 3.0 Type C for camera control & data transfer only
- COM
- 2 x Serial Port
- Remote Control
- 2.5 mm jack socket (Sony LANC compatible)
- Audio-in
- 3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)
- Audio-out
- 3.5 mm stereo jack socket
- Wi-Fi
- 5G, 802.11n with external antenna port
- Ethernet
- Gigabit Ethernet port
Power
- Battery
- Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included)
- Power Input
- DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector
- Power Output (AUX)
- DC 12V (2-pin LEMO socket)
Physical
- Material
- Aluminum Alloy
- Weight
- 1090g (EF mount) / 1160g (PL mount) / 930g (MFT mount)
- Dimensions (W x H x D)
- 91.20mm x 99.25mm x 122.25mm (EF mount)
91.20mm x 99.25mm x 133.35mm (PL mount)
91.20mm x 99.25mm x 95.60mm (MFT mount)
(Above weight & dimensions without lens)
Environment
- Storage Temperature
- -20 °C ~ 60 °C
- Operation Temperature
- 0 °C ~ 40 °C
